Study of disaster-prone geological structures and instability modes of typical goaf landslides in mountainous areas of southwest China
-
摘要: 在中国西南山区采空区滑坡频发，为研究此类滑坡之间存在的共性及差异，制定科学的防灾减灾对策，文章以灰岩山区的鸡冠岭滑坡、碎屑岩山区的赵家沟滑坡及变质岩山区的山阳滑坡3个采空区滑坡为研究对象进行对比研究，采用资料收集分析、现场调查、多期遥感解译、岩土体物理力学试验与数值模拟等方法，分析三者易灾地质结构与失稳机制的异同。研究结果表明，当斜坡具备陡峭地形、良好的临空条件、上陡下缓的“靴状地形”及二元结构等特征时，易于发生滑坡灾害，采空工况下各滑坡位移量增大，最大剪应变增量集中分布于潜在滑动面及采空区顶板区域，各滑坡整体稳定性降低。灰岩山区呈硬岩夹软岩型，以厚层硬岩夹薄层软岩为特征，呈高强度岩体特性，鸡冠岭滑坡因煤层开采较为垂直导致上部岩体拉剪应力集中，形成倾倒式滑坡,为“倾倒−滑移”破坏模式；碎屑岩山区呈软硬岩互层型，受薄层碎裂状软硬岩互层结构影响，岩体整体强度弱化，赵家沟滑坡因采空区顶板沉降形成“漏斗状”位移场,呈“蠕滑−拉裂”破坏模式；变质岩山区为典型上硬下软型，呈上部硬岩下部软岩结构，强度差异大，山阳滑坡变形机制表现为滑体剪切滑移与采空区顶板挠曲变形,呈“滑移−溃屈”破坏模式。文章可为采动型滑坡的早期识别与成灾模式研究提供重要科学依据。Abstract:
Objective Landslides occur frequently in the goaf areas of mountainous areas in Southwest China. This study aims to explore the commonalities and differences among such landslides to support the development of scientific disaster prevention and mitigation measures. Methods A comparative study was conducted using three research objects: the Jiguanling Landslide in a limestone area, the Zhaojiagou Landslide in a clastic rock area, and the Shanyang Landslide in a metamorphic rock area. Methods included data collection and analysis, on-site investigation, multi-phase remote sensing interpretation, physical and mechanical testing of rock and soil masses, and numerical simulation. These methods were employed to analyze similarities and differences in disaster-prone geological structures and instability mechanisms among the selected landslides. Results Landslide disasters are prone to occur on slopes characterized by steep terrains, favorable overhanging conditions, and binary structures. Numerical simulations indicate that under goaf conditions, the displacement of each landslide increases, the maximum shear strain increments concentrate on the potential sliding surface and the goaf roof area, and the overall stability of each landslide decreases. Conclusions The limestone mountainous area is characterized by thick layers of hard rock interbedded with thin layers of soft rock, presenting high rock mass strength. The Jiguanling Landslide belongs to the toppling–sliding failure mode. The clastic rock mountainous area is affected by interbedding of thin layers of fragmented soft and hard rock, with overall rock mass strength weakened. The Zhaojiagou Landslide belongs to the creep–tensile fracture failure mode. The metamorphic rock mountainous area exhibits hard rock at the top and soft rock at the bottom, with significant differences in strength. The Shanyang Landslide belongs to the slipping-collapse failure mode. [ Significance ] This study provides an important scientific basis for the early identification of goaf landslides and for studying goaf-related disaster formation patterns. -

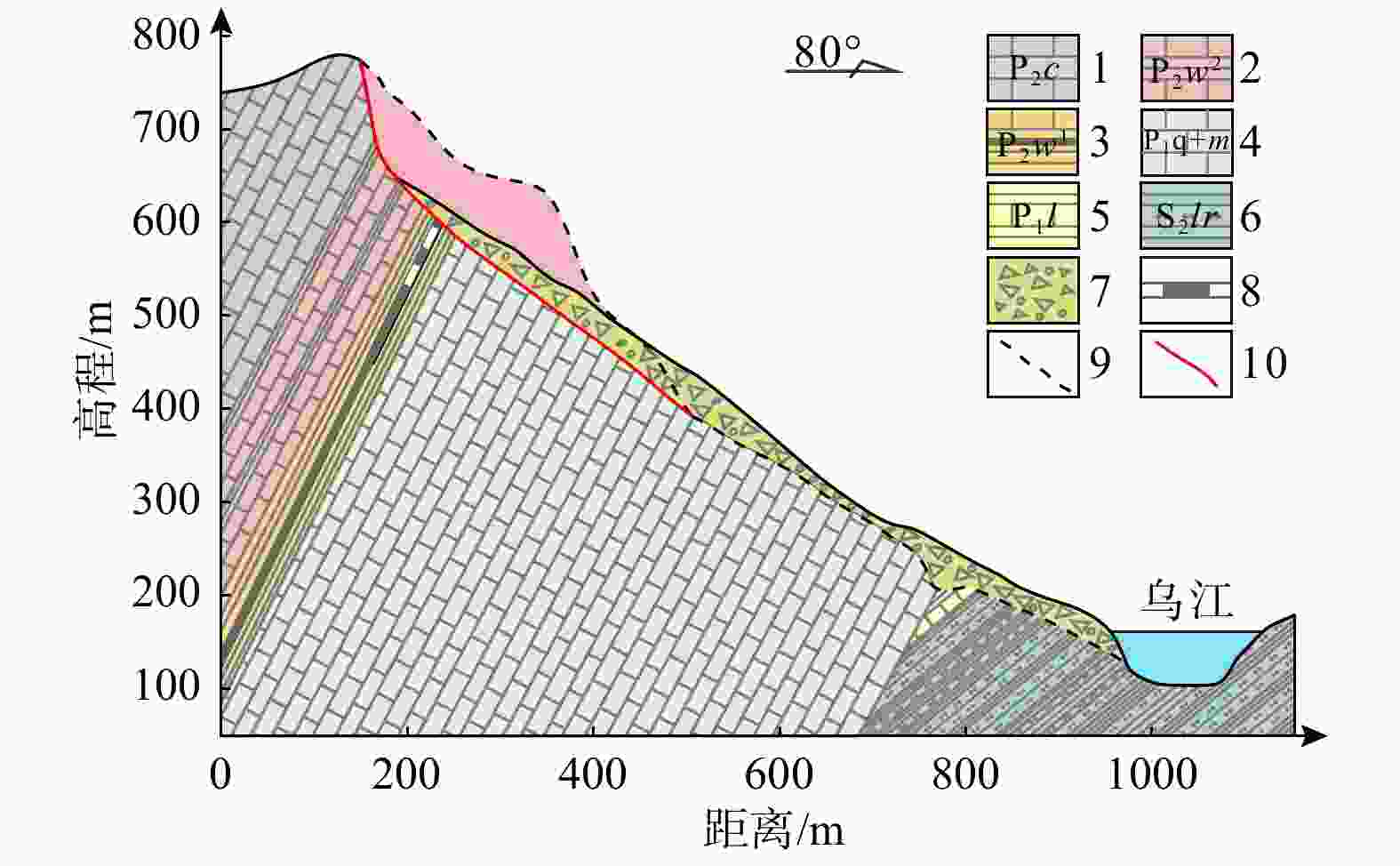

图 2 鸡冠岭滑坡工程地质剖面A-A'（据贺凯等，2018修改；剖面位置见图1）
1—二叠系中统长兴组灰岩；2—二叠系吴家坪组上段页岩、灰岩；3—二叠系吴家坪组下段页岩、灰岩、煤层；4—二叠系下统栖霞茅口组灰岩；5—二叠系下统梁山组页岩夹灰岩；6—志留系罗惹坪组页岩夹粉砂岩；7—堆积体；8—采空区；9—原始地形线；10—滑动面
Figure 2. Engineering geological section A–A' of the Jiguanling Landslide (modified from He et al., 2018; Section location is shown in Fig. 1)
1—limestone of the Changxing Formation, Middle Permian; 2—shale and limestone of the Upper Wujiaping Formation, Permian; 3—shale, limestone, and coal seam of the Lower Wujiaping Formation, Permian; 4—limestone of the Qixia–Maokou Formation, Lower Permian; 5—shale intercalated with limestone of the Liangshan Formation, Lower Permian; 6—shale intercalated with siltstone of the Luoreping Formation, Silurian; 7—accumulation deposit; 8—goaf; 9—original topographic line; 10—sliding surface

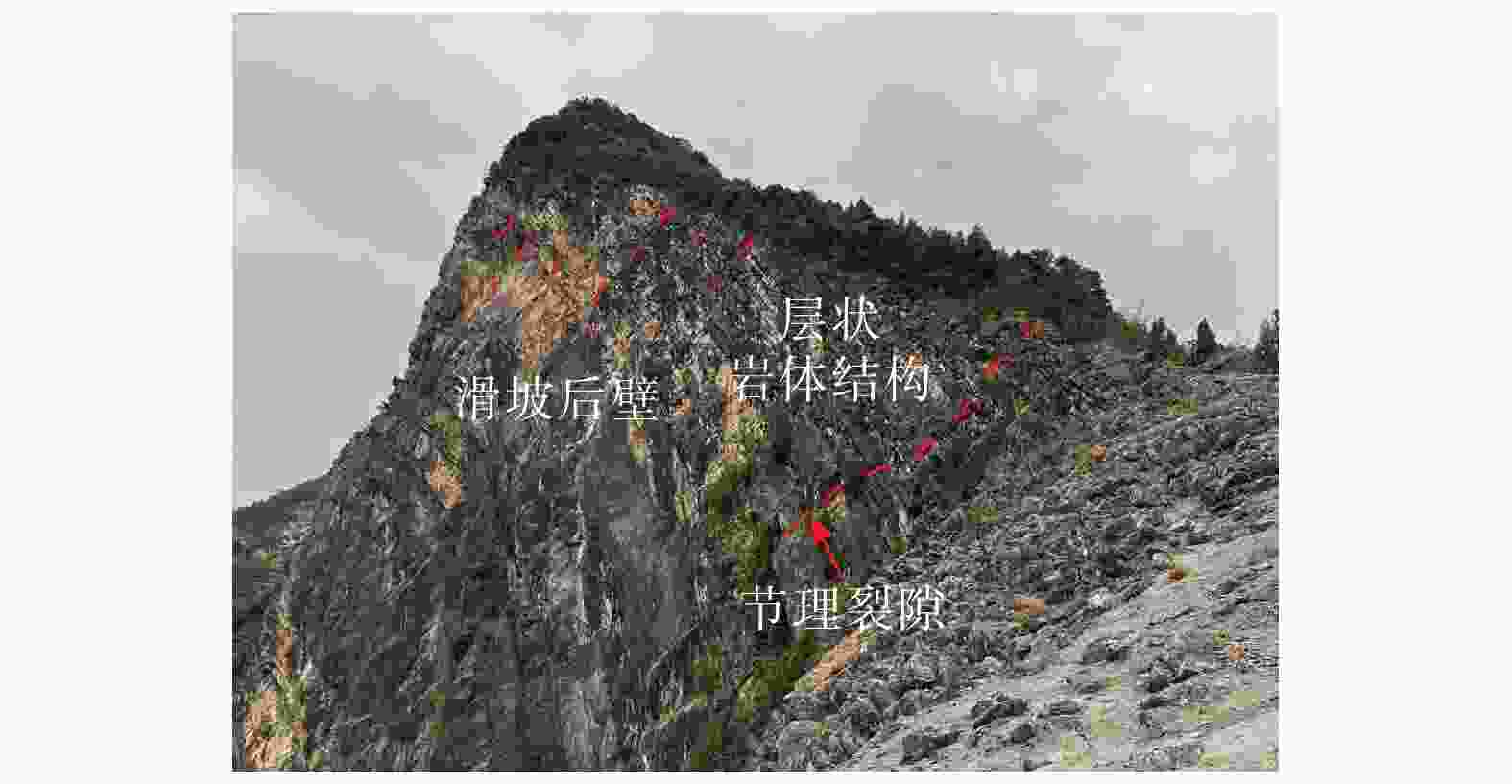

图 3 鸡冠岭滑坡滑源区地质结构（镜向：204°）
Figure 3. Geological structure of the source area of the Jiguanling Landslide (facing 204°)

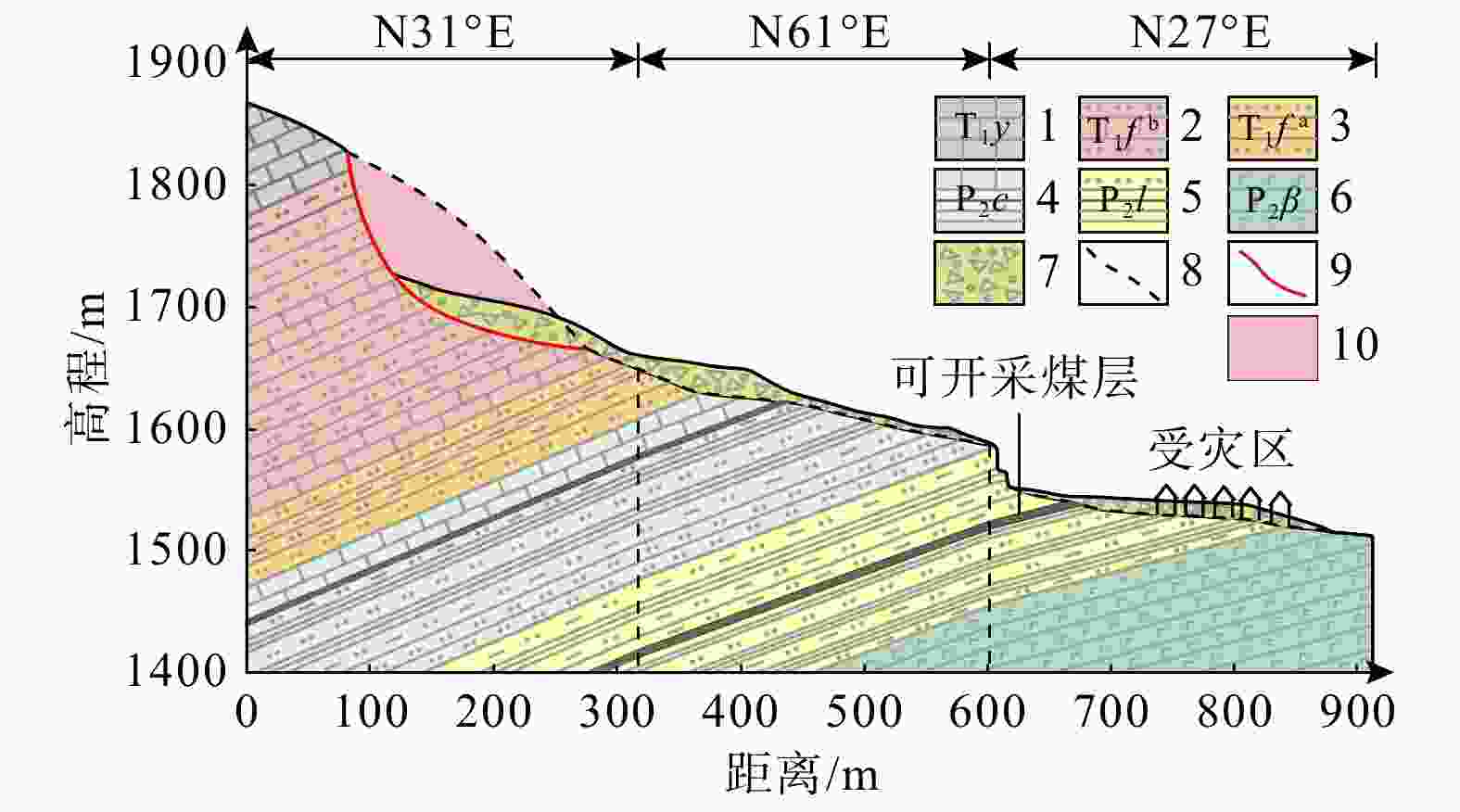

图 5 赵家沟滑坡工程地质剖面A-A'（据殷跃平等，2013修改；剖面位置见图4）
1—三叠系永宁镇组泥质灰岩、白云岩夹黏土岩；2—三叠系飞仙关组上段粉砂岩、细砂岩、页岩夹灰岩；3—三叠系飞仙关组下段粉砂岩、泥岩；4—二叠系长兴组灰岩、页岩、煤线；5—二叠系龙潭组粉砂岩、页岩夹煤层；6—二叠系峨眉山玄武岩组玄武岩夹凝灰岩、砂砾岩；7—堆积体；8—原始地形线；9—滑动面；10—滑体
Figure 5. Engineering geological section A–A' of the Zhaojiagou Landslide (modified from Yin et al., 2013; Section location is shown in Fig. 4)
1—muddy limestone and dolomite intercalated with claystone of the Yongningzhen Formation, Triassic; 2—siltstone, fine sandstone, and shale intercalated with limestone of the Upper Feixianguan Formation, Triassic; 3—siltstone and mudstone of the Lower Feixianguan Formation, Triassic; 4—limestone, shale, and coal streak of the Changxing Formation, Permian; 5—siltstone and shale intercalated with coal seam of the Longtan Formation, Permian; 6—basalt intercalated with tuff and sandstone-conglomerate of the Emeishan Basalt Formation, Permian; 7—accumulation deposit; 8—original topographic line; 9—sliding surface; 10—sliding mass

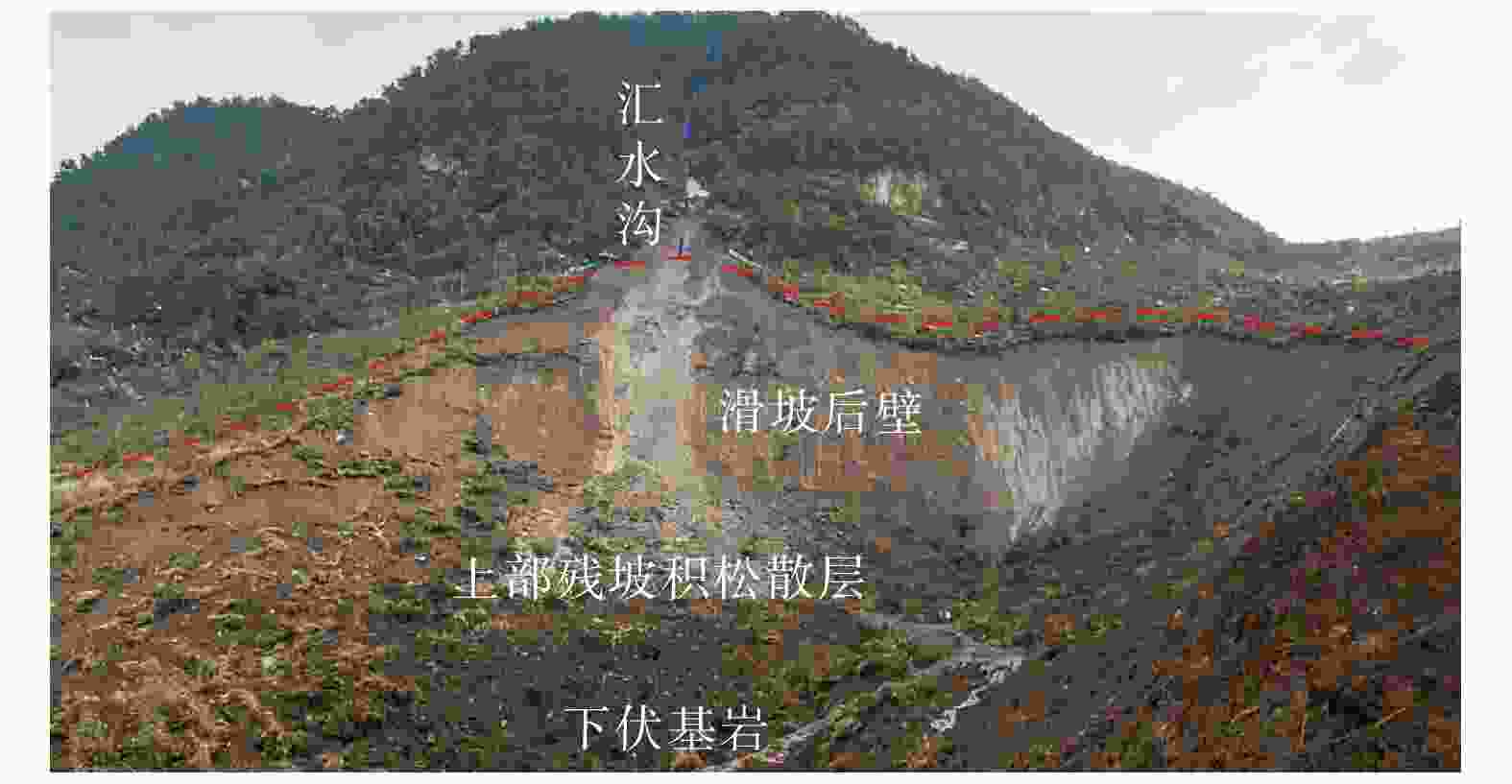

图 6 赵家沟滑坡滑源区地质结构（镜向：219°）
Figure 6. Geological structure of the source area of the Zhaojiagou Landslide (facing 219°)

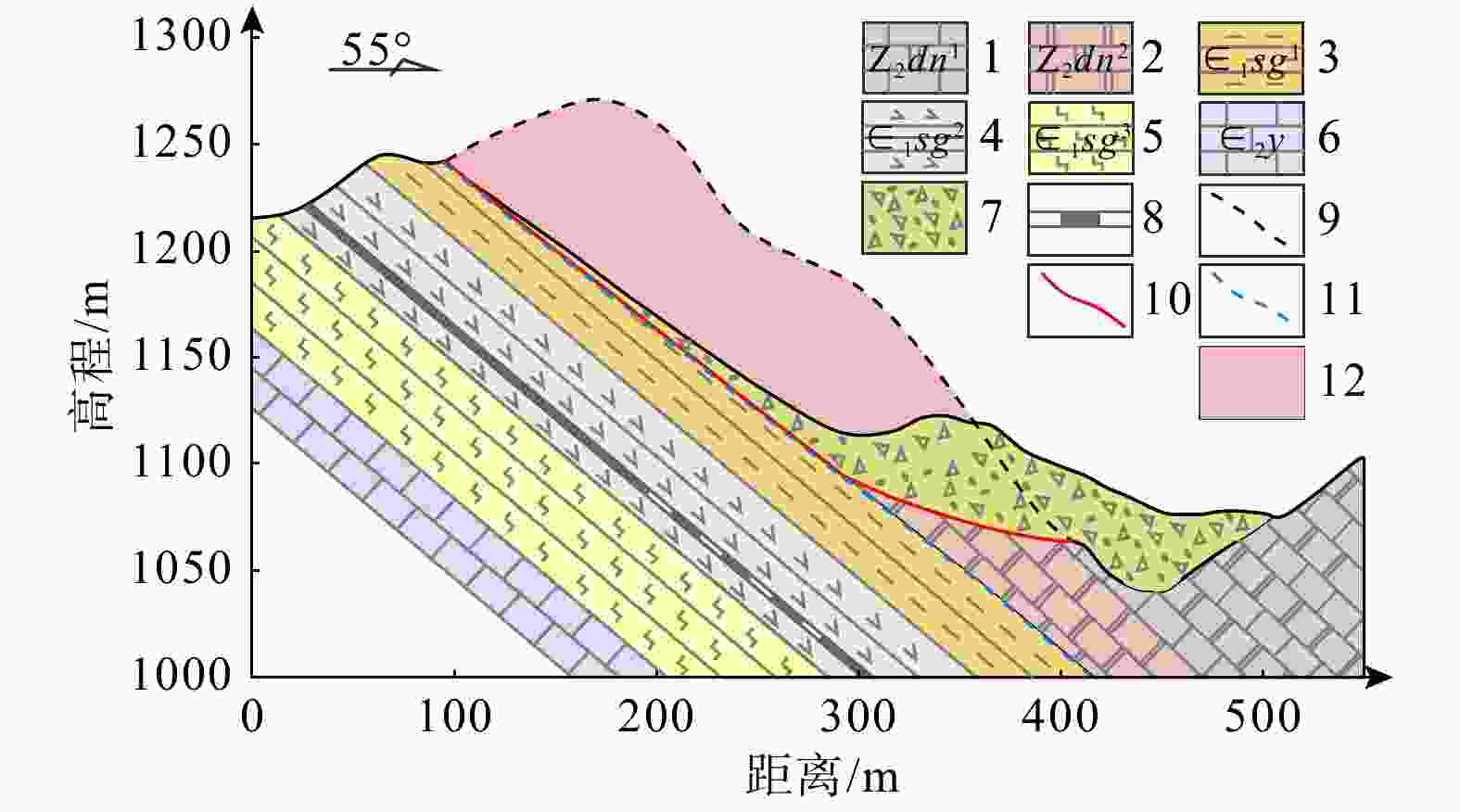

图 8 山阳滑坡工程地质剖面A-A'（据孟桓羽等，2023修改；剖面位置见图7）
1—震旦系灯影组一段厚层−巨厚层白云岩；2—震旦系灯影组二段厚层白云岩；3—下寒武统水沟口组一段夹薄层黏土硅质板岩；4—下寒武统水沟口组二段厚层硅质岩、钒矿层；5—下寒武统水沟口组三段杂色黏土岩；6—中寒武统岳家坪组灰岩；7—堆积体；8—采空区；9—原始地形线；10—滑动面；11—平行不整合面；12—滑体
Figure 8. Engineering geological section A–A' of the Shanyang Landslide (modified from Meng et al., 2023; Section location is shown in Fig. 7)
1—thick to very thick dolomite of the First Member, Dengying Formation, Sinian; 2—thick dolomite of the Second Member, Dengying Formation, Sinian; 3—thin-bedded clayey siliceous slate intercalated of the First Member, Shuigoukou Formation, Lower Cambrian; 4—thick siliceous rock and vanadium ore layer of the Second Member, Shuigoukou Formation, Lower Cambrian; 5—variegated claystone of the Third Member, Shuigoukou Formation, Lower Cambrian; 6—limestone of the Yuejiaping Formation, Middle Cambrian; 7—accumulation deposit; 8—goaf; 9—original topographic line; 10—sliding surface; 11—parallel unconformity; 12—sliding mass

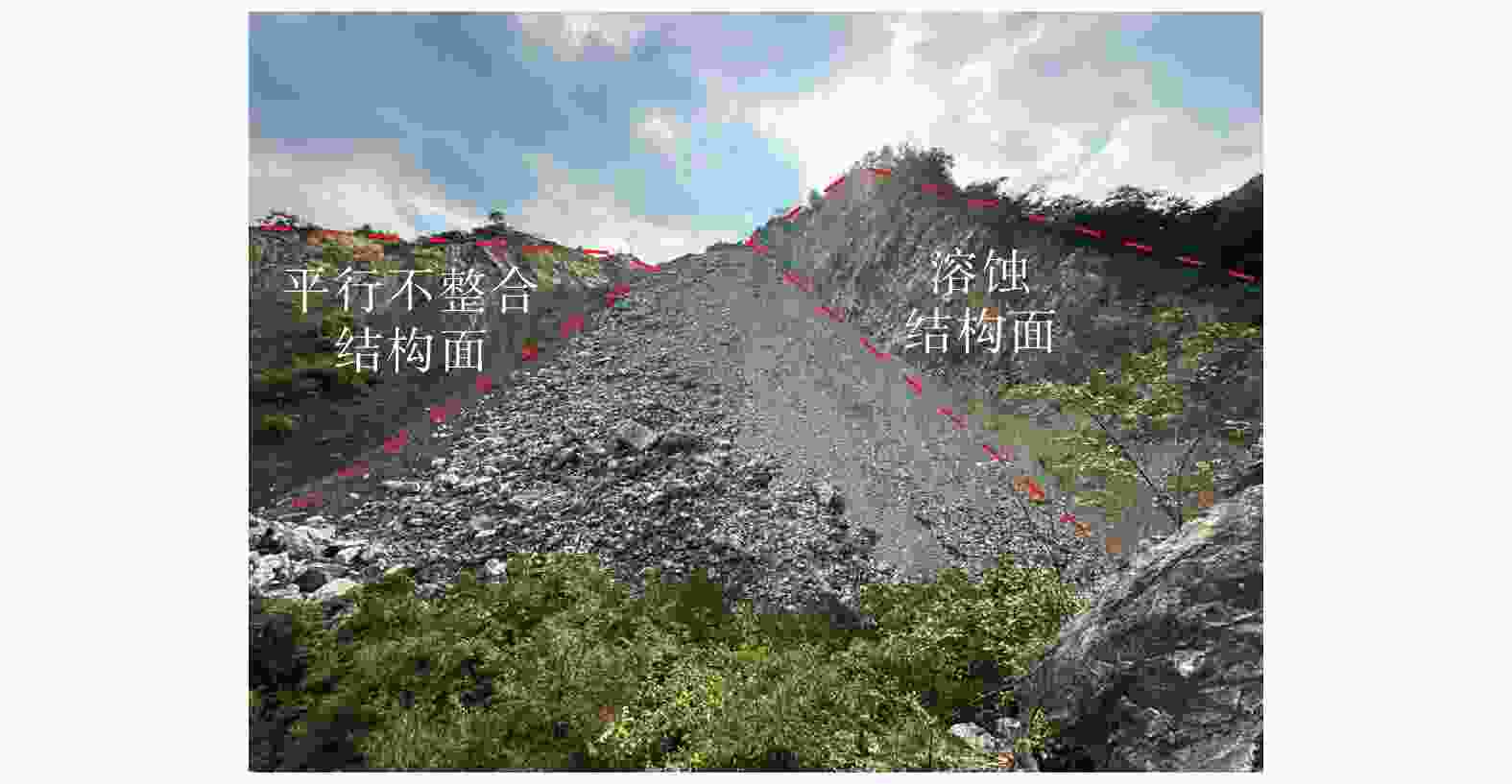

图 9 山阳滑坡滑源区地质结构（镜向：238°）
Figure 9. Geological structure of the source area of the Shanyang Landslide (facing 238°)

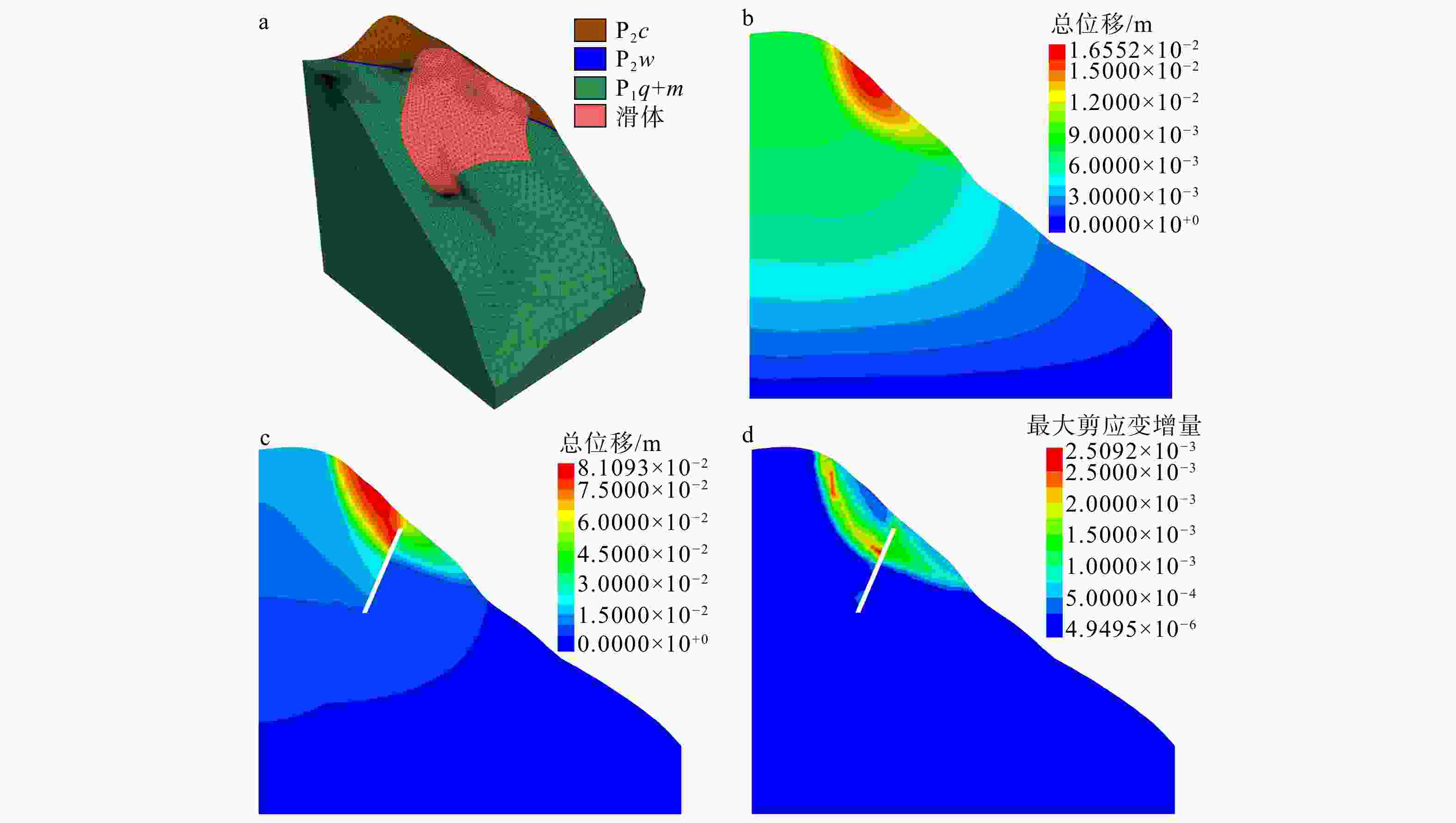

图 10 鸡冠岭滑坡失稳机制数值模拟
a—三维地质模型；b—天然工况下剖面总位移；c—采空工况下剖面总位移；d—采空工况下最大剪应变增量
Figure 10. Numerical simulation of the instability mechanism of the Jiguanling Landslide
(a) Three-dimensional geological model; (b) Total displacement of the section under natural conditions; (c) Total displacement of the section under mine goaf conditions; (d) The maximum increment of the shear strain under mine goaf conditions

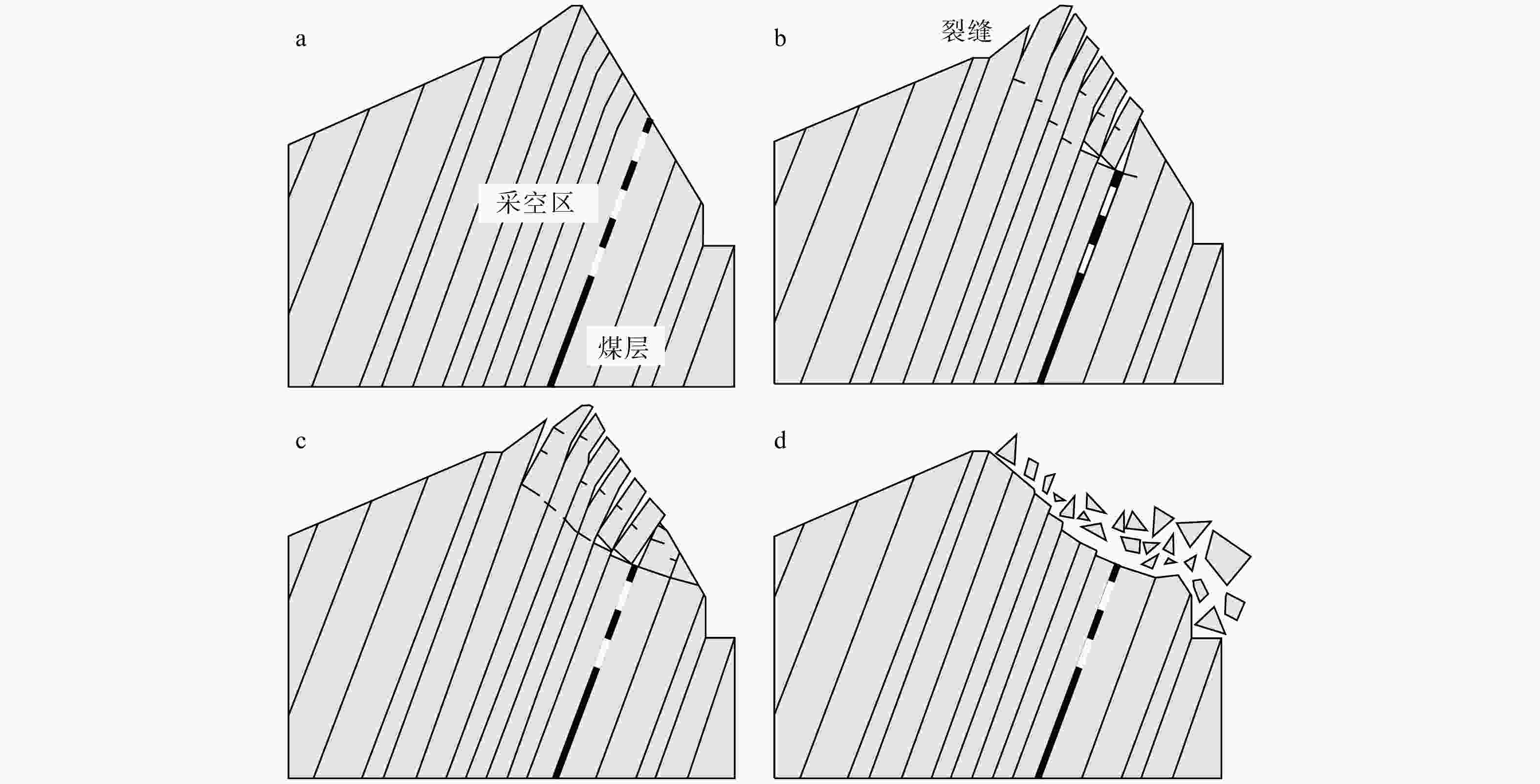

图 11 鸡冠岭滑坡破坏模式（据李滨等，2015a修改）
a—初始蠕变阶段；b—裂缝扩展、岩体弯曲阶段；c—倾倒挤压阶段；d—剪切滑移、整体失稳阶段
Figure 11. Failure mode of the Jiguanling Landslide (modified from Li et al., 2015a)
(a) Initial creep stage; (b) Fracture propagation and rock mass bending stage; (c) Pouring and squeezing stage; (d) Shear slip and overall instability stage

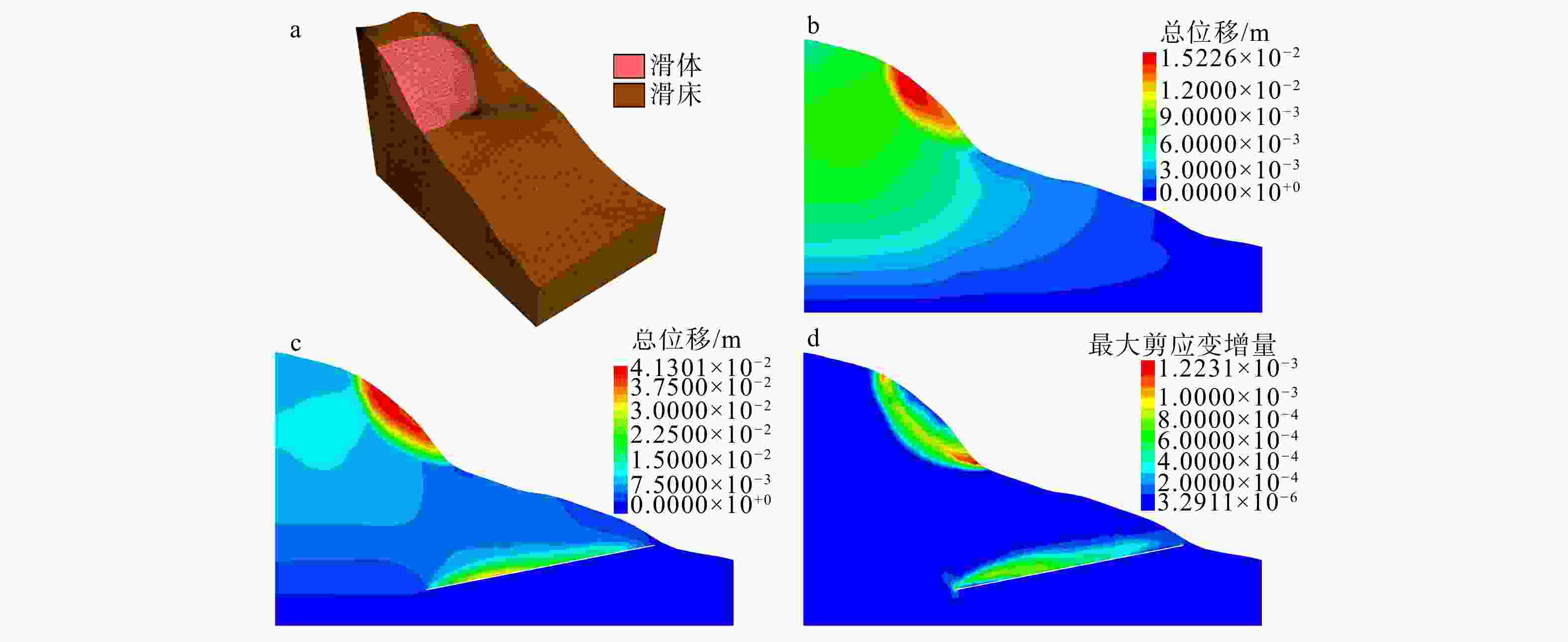

图 12 赵家沟滑坡失稳机制数值模拟
a—三维地质模型；b—天然工况下剖面总位移；c—采空工况下剖面总位移；d—采空工况下最大剪应变增量
Figure 12. Numerical simulation of the instability mechanism of the Zhaojiagou Landslide
(a) Three-dimensional geological model; (b) Total displacement of the section under natural conditions; (c) Total displacement of the section under mine goaf conditions; (d) The maximum increment of the shear strain under mine goaf conditions

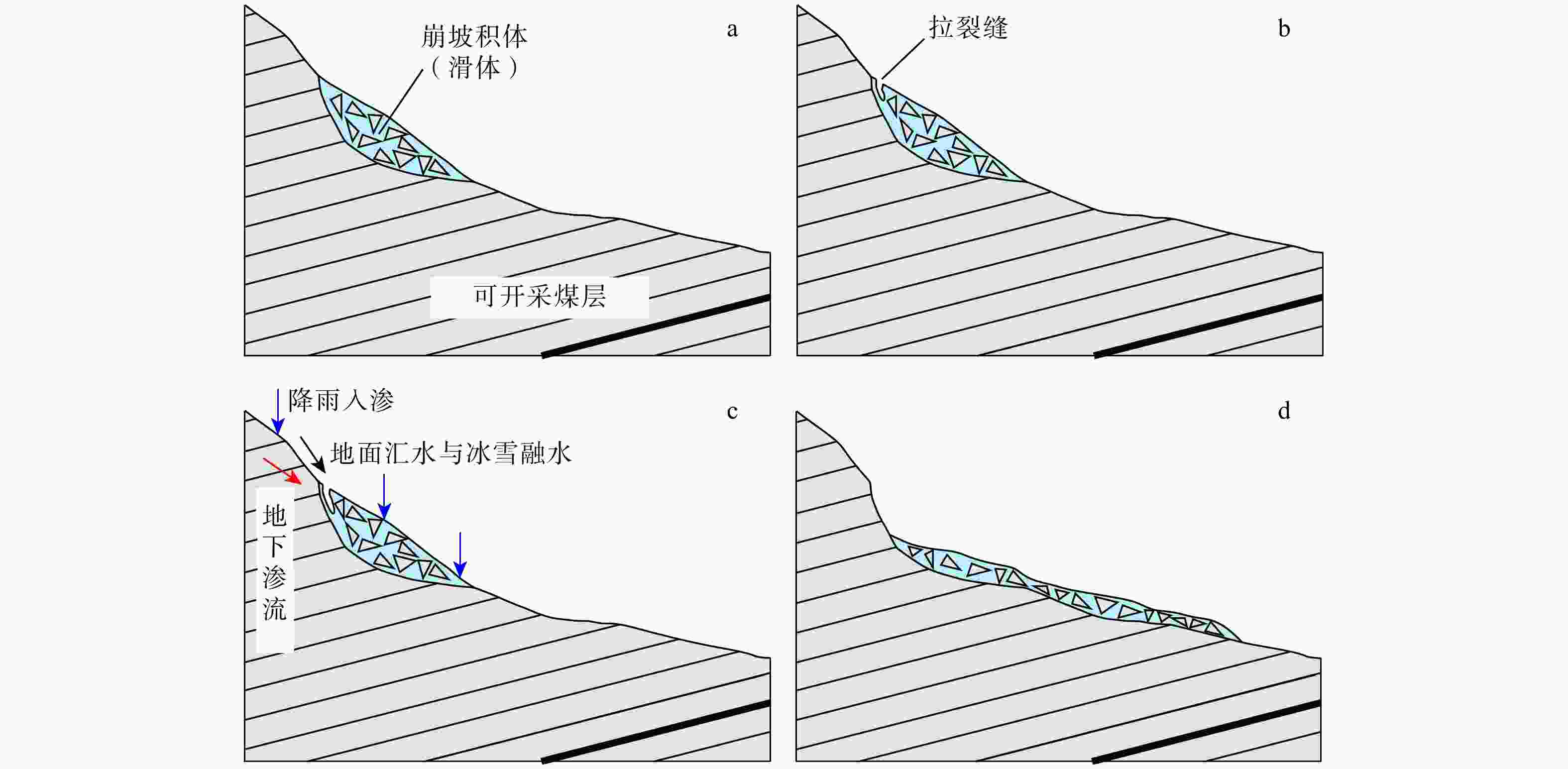

图 13 赵家沟滑坡破坏模式
a—初始蠕滑阶段；b—裂缝发育阶段；c—渗流促滑阶段；d—拉裂失稳阶段
Figure 13. Failure mode of the Zhaojiagou Landslide
(a) Initial creep stage; (b) Crack development stage; (c) Seepage and sliding promotion stage; (d) Cracking and instability stage

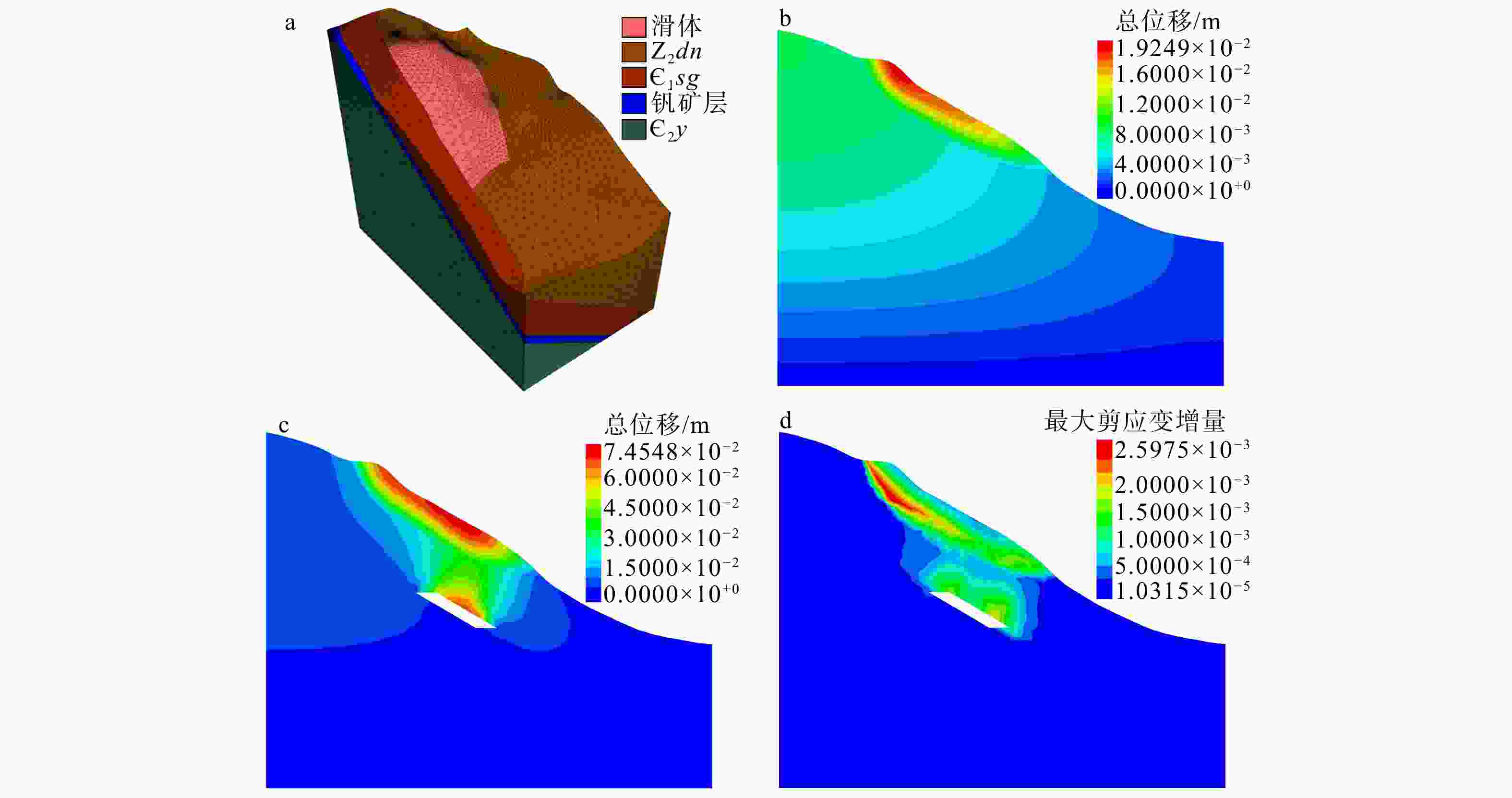

图 14 山阳滑坡失稳机制数值模拟
a—三维地质模型；b—天然工况下剖面总位移；c—采空工况下剖面总位移；d—采空工况下最大剪应变增量
Figure 14. Numerical simulation of the instability mechanism of the Shanyang Landslide
(a) Three-dimensional geological model; (b) Total displacement of the section under natural conditions; (c) Total displacement of the section under mine goaf conditions; (d) The maximum increment of the shear strain under mine goaf conditions

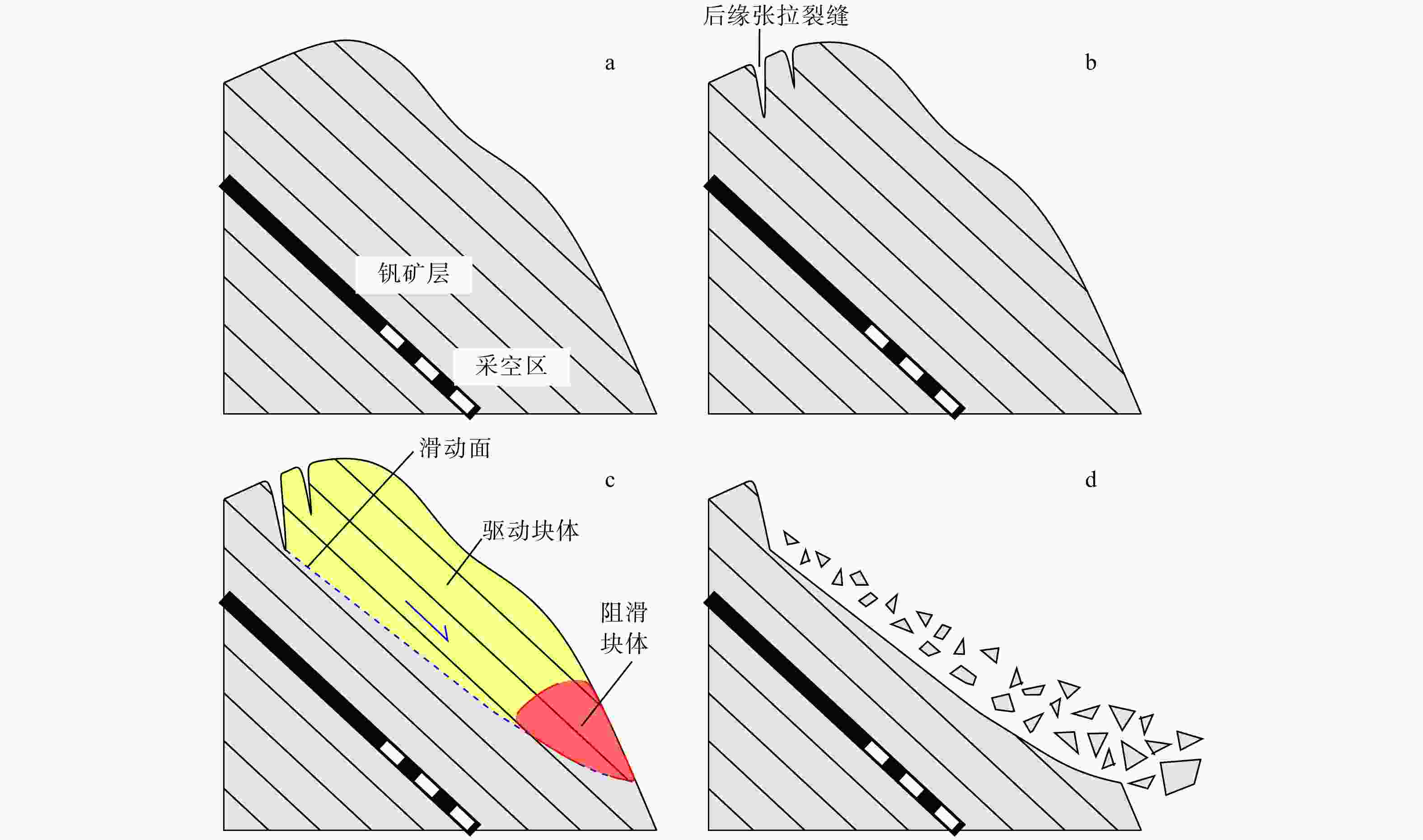

图 15 山阳滑坡破坏模式（据杨海龙等，2016；孟桓羽等，2023修改）
a—顺层蠕滑阶段；b—后缘裂缝扩展阶段；c—阻滑块体结构损伤阶段；d—溃屈失稳阶段
Figure 15. Failure mode of the Shanyang Landslide (modified from Yang et al., 2016; Meng et al., 2023)
(a) Bedding creep and sliding stage; (b) Trailing edge crack propagation stage; (c) Structural damage stage of the anti-sliding block; (d) Collapse and instability stage
表 1 灰岩山区岩体物理力学参数（数据来自王国章，2014；李滨等，2015a）
Table 1. Physical and mechanical parameters of rock mass in limestone mountainous areas (data from Wang, 2014; Li et al., 2015a)
岩性 容重/
kN•m−3黏聚力c/MPa 内摩擦角φ/° 弹性模量/
MPa抗压强度/
MPa抗拉强度/
MPa泊松比 灰岩 25.0 9.38 40 12000 48.70 0.95 0.20 页岩 — 5.48 30 5500 24.20 0.40 0.26 煤层 15.0 0.30 20 5500 — 0.40 0.26
下载: 导出CSV
表 2 碎屑岩山区岩体物理力学参数
Table 2. Physical and mechanical parameters of rock mass in clastic rock mountainous areas
岩性 黏聚力c/MPa 内摩擦角φ/° 弹性模量/GPa 抗压强度/MPa 泊松比 灰岩 17.1 42.7 19.7 92.3 0.18 铁质砂岩 10.1 42.8 11.7 68.7 0.20 泥质砂岩 8.46 42.2 9.43 57.4 0.23 钙质砂岩 14.9 43.2 15.4 78.5 0.19 泥岩 4.89 39.4 6.87 37.6 0.25
下载: 导出CSV
表 3 变质岩山区岩体物理力学参数（数据来自阴晓冬，2018；王佳运等，2019；亢佳乐，2022）
Table 3. Physical and mechanical parameters of rock mass in metamorphic rock mountainous areas (data from Yin, 2018; Wang et al., 2019; Kang, 2022)
岩性 容重/
（kN•m−3）黏聚力c/MPa 内摩擦角φ/（°） 弹性模量/
GPa抗压强度/
MPa抗拉强度/
MPa泊松比 白云岩 28.00 7.18 48.53 31.67 63.70 0.13 0.22 硅质岩 26.00 1.69 46.15 78.00 98.64 — 0.17 钒矿层 25.37 1.50 30.00 12.58 — 2.00 0.28 灰岩 27.00 7.00 34.50 43.69 — 4.50 0.20
下载: 导出CSV
表 4 采空区滑坡易灾地质结构综合对比
Table 4. Comprehensive comparison of geological structures prone to landslides in goaf areas
易灾地质结构 灰岩山区鸡冠岭滑坡 碎屑岩山区赵家沟滑坡 变质岩山区山阳滑坡 地形条件 高陡 上陡下缓靴状地形 陡峻山脊 微地貌类型 岩溶中山地貌 溶蚀−侵蚀中山地貌 中山陡坡地貌 地质构造 桐麻湾背斜核部西翼 大擢魁向斜西北翼，呈单斜构造 耀岭河倒转背斜倒转翼，呈北倾单斜构造 临空条件 两侧临空 平缓开阔 三面临空
地层岩性上部为灰岩
中部为页岩夹煤层,下部为灰岩上部基岩为砂岩与泥岩互层
下部砂岩页岩煤层上部为白云岩
下部硅质岩与硅质板岩、钒矿层岩性组合 上硬下软二元结构 软硬相间二元结构 上硬下软二元结构 岩体结构 层状块裂 薄层碎裂状 层状板裂及层状块裂 斜坡结构类型 陡倾层状横向岩质斜坡 逆向坡 陡倾层状斜向顺层岩质斜坡 结构面 两组 多组 三组 关键主控地层 二叠系吴家坪组（P2w） 三叠系飞仙关组（T1f） 下寒武统水沟口组（Є1sg） 岩体力学强度 硬岩夹软岩型，整体强度较高 软硬岩互层型，整体强度较低 典型上硬下软型，强度差异大 主要地下水类型 岩溶水 基岩裂隙水 基岩裂隙水 矿物种类 煤矿 煤矿 钒矿 矿层采动方式 掩护支架采煤法 平巷开采技术 人工爆破、钻爆法、房柱式崩落回采 主要滑体成分 灰岩 残坡积层黏土夹碎块石 白云岩
下载: 导出CSV
表 5 赵家沟滑坡岩土体物理力学参数取值表（数据来自殷跃平等, 2013）
Table 5. Physical and mechanical parameters of rock and soil mass in the Zhaojiagou Landslide (data from Yin et al., 2013)
岩性 容重 /（kN•m−3） 黏聚力c/MPa 内摩擦角φ/（°） 弹性模量/MPa 泊松比 滑体 18.5 0.10 16.0 10000 0.30 滑床 21.5 0.20 20.5 100000 0.25 煤层 15.0 0.30 20.0 5500 0.26
下载: 导出CSV
-
