Exploration prospects of the whole oil and gas system in the Permian hydrocarbon depressions in the Eastern Junggar Basin
-
摘要: 准噶尔盆地东部地区包含多个残余富烃凹陷，其中吉木萨尔凹陷自斜坡区到凹陷区发现了常规油、致密油、页岩油等多类型油藏，展现出常规−非常规有序共生、全油气系统成藏的特点。为了探索准东地区其他富烃凹陷油气成藏规律和勘探潜力，对二叠系烃源岩开展系统评价、沉积相研究、储层特征分析和油气成藏研究。结果表明：准东地区中二叠统发育咸水湖相优质烃源岩，吉南、吉木萨尔、石树沟三个凹陷烃源岩规模大、品质最好，已达到成熟演化阶段；二叠系富烃凹陷周缘的继承性古隆起长期提供物源，凹陷区发育扇三角洲、辫状河三角洲、咸化湖沉积，有序形成砂砾岩、云质砂岩、云质泥岩等，具有全粒序成储特点；从盆缘到凹陷区发育构造岩性常规油气藏、致密油气和页岩油气聚集，具有全类型成藏、全油气系统发育模式。根据成藏综合评价和勘探程度优选有利区带，在全油气系统成藏模式指导下，优选石树沟凹陷南斜坡、吉南凹陷芦草沟组作为准东地区未来探索的重要勘探区带。Abstract:
Objective Multiple types of oil reservoirs, including conventional oil, tight oil, and shale oil, have been discovered from the slope area to the depression area in the Jimusaer Depression, demonstrating the characteristics of conventional–unconventional ordered coexistence and complete oil and gas system accumulation. Methods Source rocks, sedimentary reservoirs, and reservoir formation were examined to explore the rules of oil and gas accumulation in hydrocarbon-rich depressions in the Eastern Junggar. Results High-quality, saline, lacustrine facies source rocks are believed to be developed in the Middle Permian of the Eastern Junggar. The source rocks in the Jinan, Jimusaer, and Shishugou Depressions have large scale and best quality and have reached the mature stage of evolution. The inherited ancient uplifts around the Permian hydrocarbon-rich depression provided long-term material sources, with the development of fan deltas, braided river deltas, and saline lake sediments, forming sandy conglomerates, cloudy sandstones, cloudy mudstones, etc., in an orderly manner and demonstrating the characteristics of grain sequence reservoir formation. Conventional oil and gas, tight oil and gas, and shale oil and gas accumulations, demonstrating a complete type of reservoir formation and complete oil and gas system development pattern, are developed from the edge of the basin to the depression area. Conclusions The depressions in the Eastern Junggar Basin show a whole oil and gas system pattern. Significance Under the guidance of the entire oil and gas system reservoir formation model, the southern slope of the Shishugou Sag and the Lucaogou Formation of the Jinan Sag were selected as important exploration zones for future exploration in the Eastern Junggar. -
图 3 准东地区南北向构造演化剖面（剖面位置见图1 A-A’）
a—早石炭世构造剖面；b—晚石炭世构造剖面；c—早二叠世构造剖面；d—中二叠世构造剖面；e—晚二叠世构造剖面；f—三叠纪；g—早—中侏罗世构造剖面；h—中—晚侏罗世构造剖面；i—白垩纪构造剖面；j—古近纪构造剖面；k—现今构造剖面
Figure 3. North−south tectonic evolution profile of the Eastern Junggar Basin
(a) Early Carboniferous tectonic profile; (b) Late carboniferous tectonic profile; (c) Early Permian tectonic profile; (d) Middle Permian tectonic profile; (e) Late Permian tectonic profile; (f) Triassic tectonic profile; (g) Early and Middle Jurassic tectonic profile ; (h) Middle and Late Jurassic tectonic profile; (i) Cretaceous tectonic profile; (j) Paleogene tectonic profile;(k) Nowadays

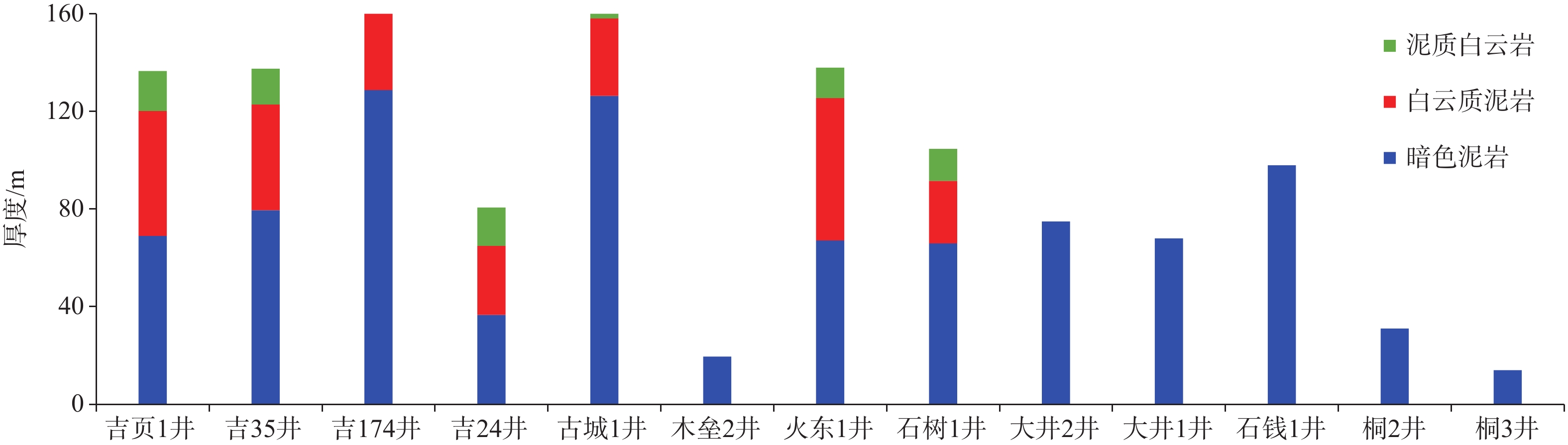

图 4 准东地区不同凹陷二叠系烃源岩岩性对比图
Figure 4. Lithology correlation map of Permian source rocks in different depressions in the Eastern Junggar Basin

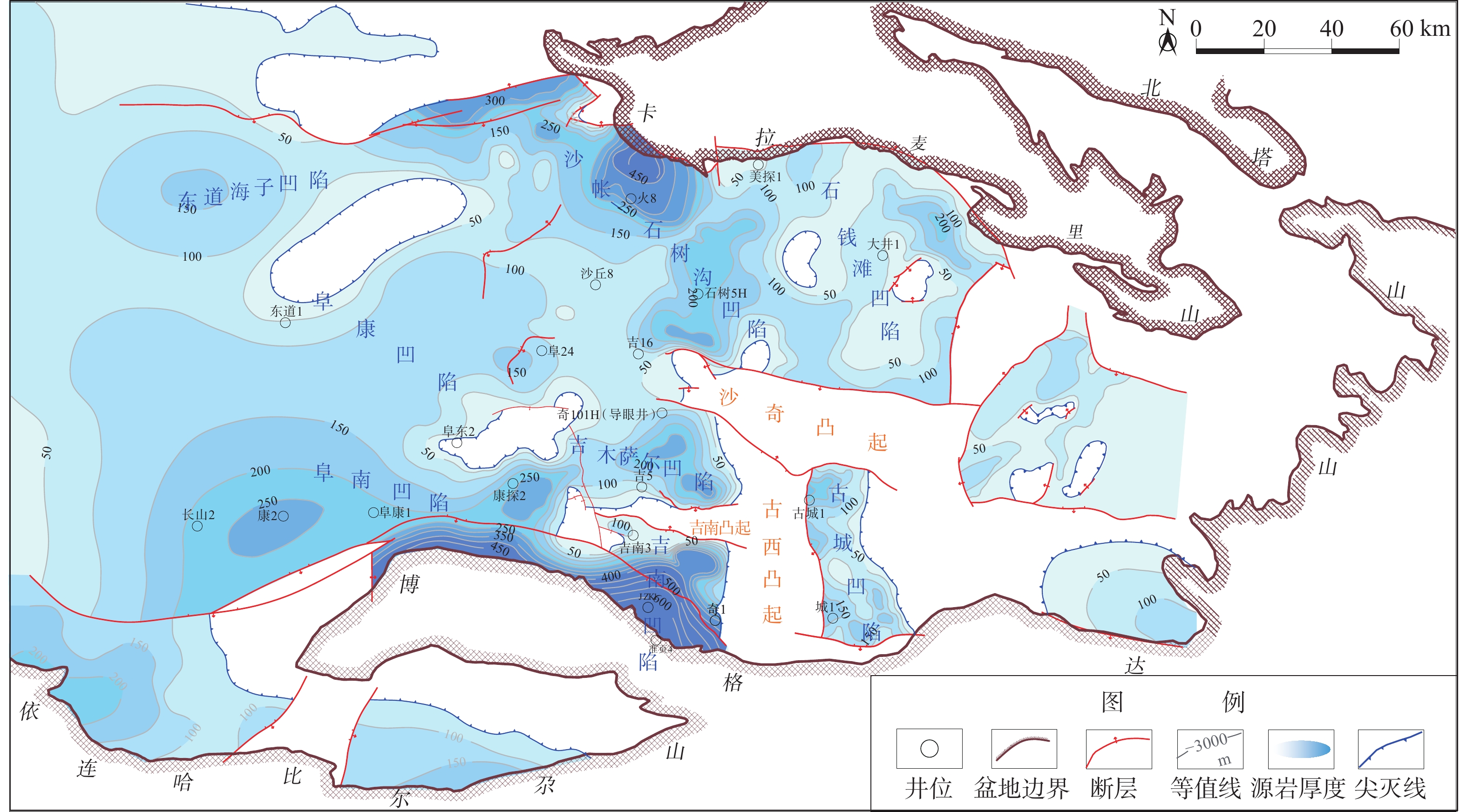

图 5 准东地区中二叠统烃源岩厚度图
Figure 5. Middle Permian source rock thickness map of the Eastern Junggar Basin

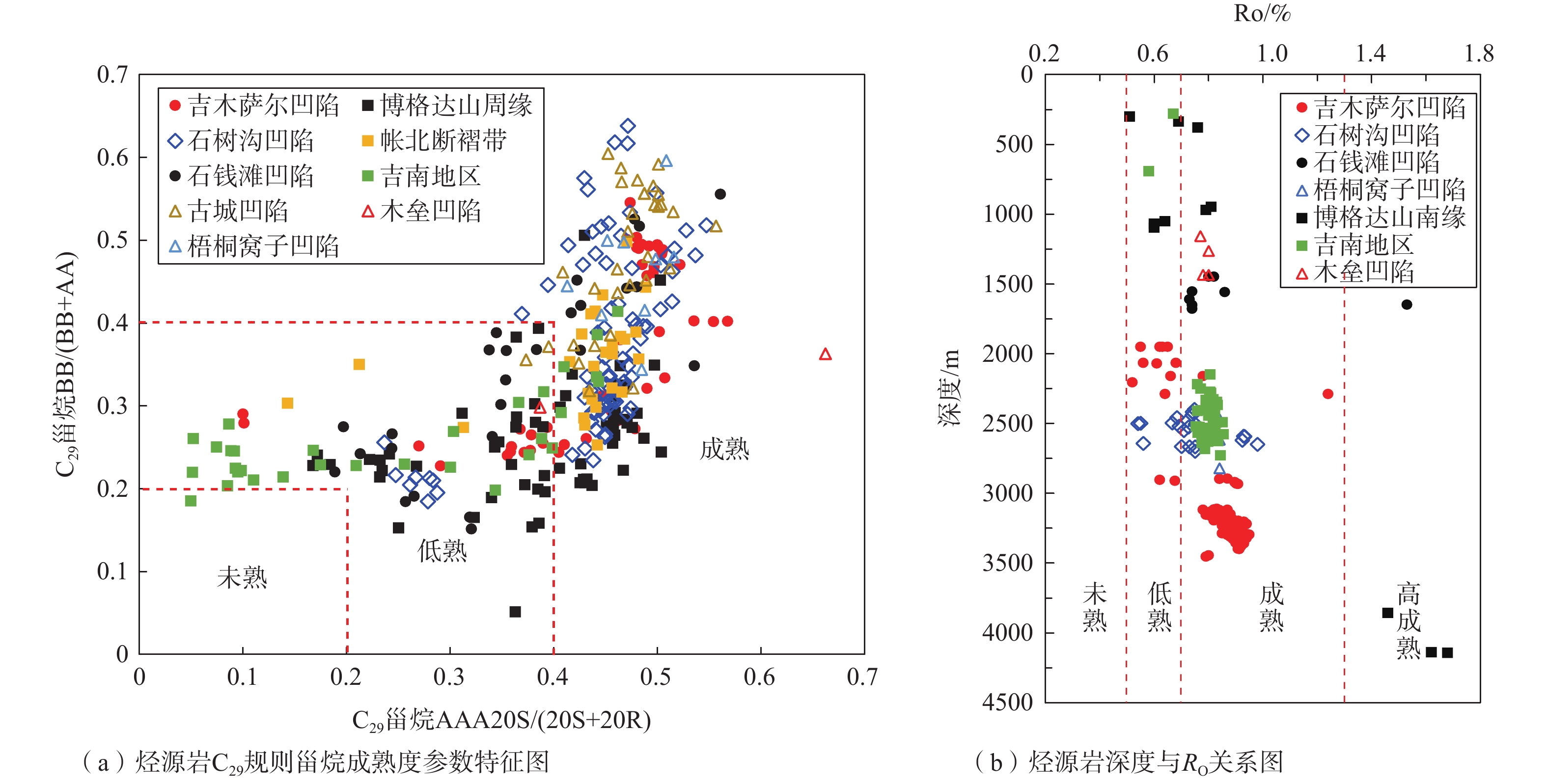

图 6 准东地区二叠系烃源岩成熟度图
Figure 6. Permian source rock maturity chart for the Eastern Junggar Basin
(a) Characteristics of sterane maturity parameters of source rock C29; (b) Relationship between source rock depth and RO
图 7 吉木萨尔凹陷二叠系岩心单偏光铸体微观照片
a—吉2801，P2l，3055.01 m，含碳酸盐粉砂岩，构造−溶蚀缝；b—吉2801，P2l，3056.62 m，云质粉砂岩，构造缝、溶孔；c—吉3301，P2l，3546.38 m，晶屑岩屑细粒凝灰岩，溶孔；d—吉3801，P2l，2685.06 m，凝灰质含灰砾质砂岩，构造缝、贴粒缝；e—吉3801，P2l，2695.38 m，含砾粗粒岩屑砂岩，构造缝、贴粒缝；f—吉新2，P2 jj，4592.47 m，细粒长石岩屑砂岩，粒间孔；g—吉新4，P2 jj，4526.82 m，粗中粒岩屑砂岩，粒间孔；h—吉1901，P3wt，2117.54 m，中粗粒岩屑砂岩，粒间孔、粒内溶孔；i—吉1901，P3wt，2117.73 m，不等粒岩屑砂岩，粒间孔、粒内溶孔、构造缝
Figure 7. Photomicrographs of Permian core in the Jimusaer Depression
(a) Ji 2801, P2l, 3055.01 m, carbonate siltstone, structure-corrosion fracture; (b) Ji 2801, P2l, 3056.62 m, clouded siltstone, structural fractures, solution pores; (c) Ji 3301, P2l, 3546.38 m, crystalline debris fine grained tuff, solution pore; (d)Ji 3801, P2l, 2685.06m, tuffaceous gravelly sandstone, structural fracture, granular fracture; (e) Ji 3801, P2l, 2695.38 m, coarse-grained lithic sandstone with gravel, structural fracture and plastered fracture; (f) Jixin 2, P2 jj, 4592.47 m, fine-grained feldspar lithic sandstone, intergranular pore; (g) Jixin 4, P2 jj, 4526.82 m, coarse and medium-grained lithic sandstone, intergranular pores; (h) Ji 1901, P3wt, 2117.54 m, medium coarse-grained lithic sandstone, intergranular pore, intra granular pore; (i)Ji 1901, P3wt, 2117.73 m, unequal grained lithic sandstone, intergranular pores, intra granular pores, structural fractures

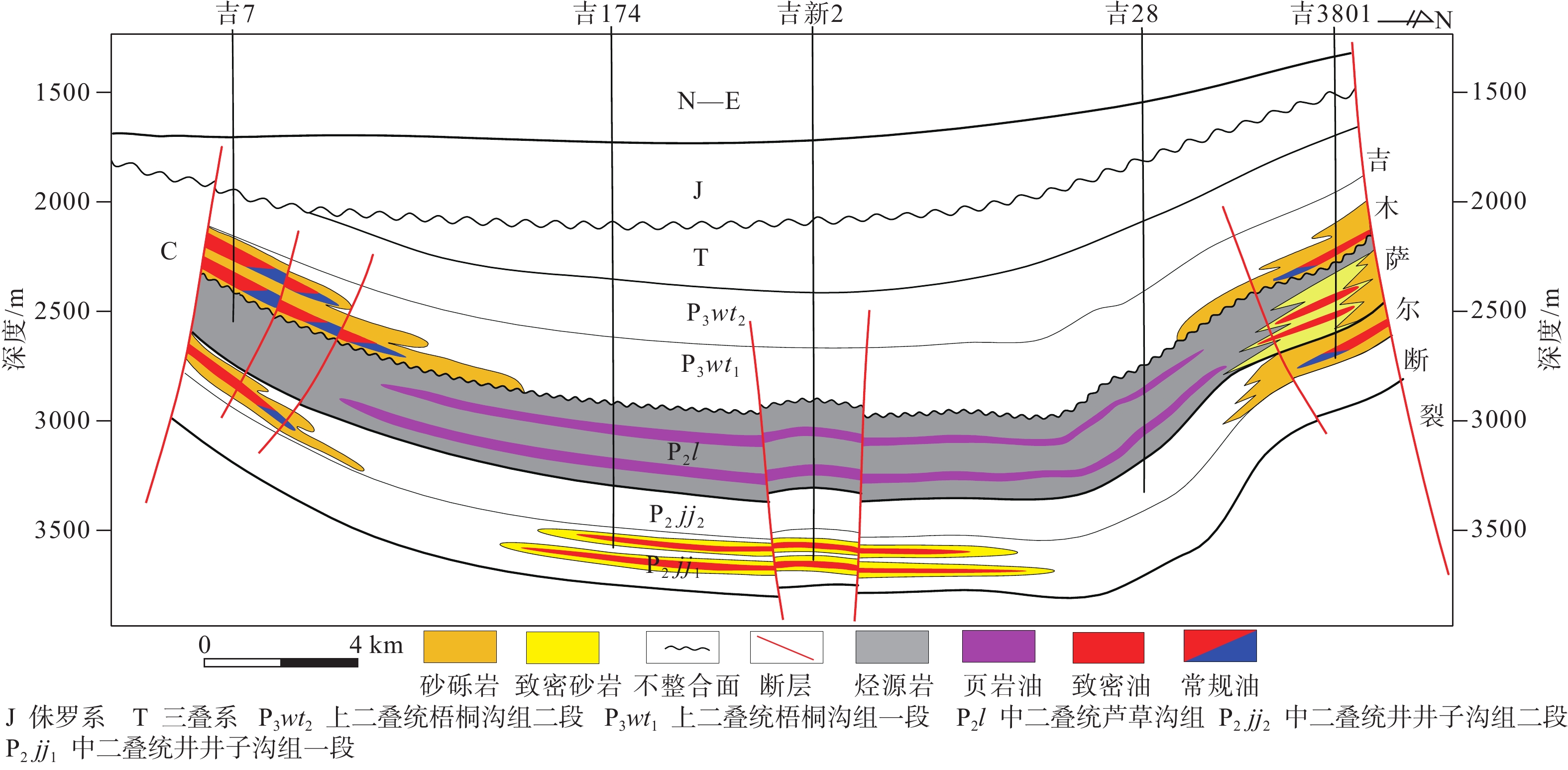

图 8 吉木萨尔凹陷二叠系全油气系统成藏模式（剖面位置见图1 B-B’）
Figure 8. Hydrocarbon accumulation model of Permian whole oil and gas system in the Jimusaer Depression
图 9 吉南凹陷−吉木萨尔凹陷−石树沟凹陷近南北向地震地质解释剖面（剖面位置见图1 C-C’）
Figure 9. Seismic geological interpretation section of the Jinan−Jimusaer−Shishugou Depressions
图 10 石树沟−吉木萨尔凹陷芦草沟组综合评价图
Figure 10. Comprehensive evaluation map of the Lusaogou Formation in the Shishugou-Jimusaer Depression
表 1 准东地区将军庙地层小区和吉木萨尔地层小区二叠系对比关系
Table 1. Correlation of Permian system between the Jiangjunmiao community and the Jimusaer community in the Eastern Junggar Basin
将军庙地层小区 吉木萨尔地层小区 群 组 群 组 下仓房沟群P3ch 梧桐沟组P3wt 下仓房沟群P3ch 梧桐沟组P3wt 泉子街组P3q 泉子街组P3q 上芨芨槽群P2 jj 平地泉组P2 p 红雁池组P2h 芦草沟组P2l 将军庙组P2 j 井井子沟组P2 j 乌拉泊组P2w 下芨芨槽群P1 jj 金沟组P1 j 塔什库拉组P1t 石人子沟组P1s
下载: 导出CSV
-
[1] CAO J, LEI D W, LI Y W, et al., 2015. Ancient high-quality alkaline lacustrine source rocks discovered in the Lower Permian Fengcheng Formation, Junggar Basin[J]. Acta Petrolei Sinica, 36(7): 781-790. (in Chinese with English abstract [2] CHEN C Y, TAN Q, ZHANG J F, et al., 2015. Sedimentary evolution of the member 1 of Permian Wutonggou Formation in Jimusaer Sag, Junggar Basin[J]. Xinjiang Petroleum Geology, 36(2): 169-173, 213. (in Chinese with English abstract [3] DING C, WANG J W, 2015. Sedimentary development law of Permian Wutonggou Formation in Jimsar Sag of Junggar Basin[J]. China Petroleum Exploration, 20(3): 22-29. (in Chinese with English abstract [4] HE W J, QIAN Y X, ZHAO Y, et al., 2021. Exploration implications of total petroleum system in Fengcheng Formation, Mahu Sag, Junggar Basin[J]. Xinjiang Petroleum Geology, 42(6): 641-655. (in Chinese with English abstract [5] JIA C Z, 2017. Breakthrough and significance of unconventional oil and gas to classical petroleum geology theory[J]. Petroleum Exploration and Development, 44(1): 1-10. doi: 10.1016/S1876-3804(17)30002-2 [6] KUANG L C, WANG X T, GUO X G, et al., 2015. Geological characteristics and exploration practice of tight oil of Lucaogou Formation in Jimsar Sag[J]. Xinjiang Petroleum Geology, 36(6): 629-634. (in Chinese with English abstract [7] LEI D W, ABULIMITI, TANG Y, et al., 2014. Controlling factors and occurrence prediction of high oil-gas production zones in lower Triassic Baikouquan Formation of Mahu Sag in Junggar Basin[J]. Xinjiang Petroleum Geology, 35(5): 495-499. (in Chinese with English abstract [8] LEI D W, CHEN G Q, LIU H L, et al., 2017. Study on the forming conditions and exploration fields of the Mahu Giant Oil (Gas) Province, Junggar Basin[J]. Acta Geologica Sinica, 91(7): 1604-1619. (in Chinese with English abstract [9] LI J Z, CHEN X, YANG R Z, et al., 2023. Petroleum geology and sub-source hydrocarbon accumulation of Permian reservoirs in Jinan Sag, eastern Junggar Basin, NW China[J]. Petroleum Exploration and Development, 50(3): 491-503. (in Chinese with English abstract [10] LIANG S J, LUO Q S, KANG J L, et al., 2021. Breakthrough and significance of risk exploration in Well Satan 1 in Jinan Sag, Junggar Basin[J]. China Petroleum Exploration, 26(4): 72-83. (in Chinese with English abstract [11] MA C, WU K Y, PEI Y W, et al., 2019. Quantitative analysis of tectonic characteristics and evolution in the eastern Junggar Basin[J]. Journal of Geomechanics, 25(3): 313-323. (in Chinese with English abstract [12] REN X C, XIU J L, LIU L, et al., 2023. Late Paleozoic-Mesozoic structural style, deformation sequence, and formation process and mechanism of the checkboard structure in the eastern Junggar Basin[J]. Journal of Geomechanics, 29(2): 155-173. (in Chinese with English abstract [13] TAN Q, ZHANG X H, YUE H X, et al., 2018. Study on sedimentary model of Permian Wutonggou Formation in northern Jimusaer Sag, Junggar Basin[J]. Xinjiang Oil & Gas, 14(4): 1-7. (in Chinese with English abstract [14] TANG Y, GUO W J, WANG X T, et al., 2019. A new breakthrough in exploration of large conglomerate oil province in Mahu Sag and its implications[J]. Xinjiang Petroleum Geology, 40(2): 127-137. (in Chinese with English abstract [15] TANG Y, CAO J, HE W J, et al., 2021. Development tendency of geological theory of total petroleum system: insights from the discovery of Mahu large oil province[J]. Xinjiang Petroleum Geology, 42(1): 1-9. (in Chinese with English abstract [16] WANG J, LIU J, PAN X H, et al., 2024. Precursor and mechanism of hydrocarbon generation for shale oil in Lucaogou Formation, Jimsar Sag[J]. Xinjiang Petroleum Geology, 45(3): 253-261. (in Chinese with English abstract [17] WANG X J, WANG T T, CAO J, 2018. Basic characteristics and highly efficient hydrocarbon generation of alkaline-lacustrine source rocks in Fengcheng Formation of Mahu Sag[J]. Xinjiang Petroleum Geology, 39(1): 9-15. (in Chinese with English abstract [18] WANG X J, YANG Z F, GUO X G, et al., 2019. Practices and prospects of shale oil exploration in Jimsar Sag of Junggar Basin[J]. Xinjiang Petroleum Geology, 40(4): 402-413. (in Chinese with English abstract [19] YANG Y X, ZHANG J F, ZHANG J H, et al., 2022. Sedimentary characteristics and main controlling factors of the Middle-Upper Permian and Middle-Upper Triassic around Bogda Mountain of Xinjiang, NW China[J]. Petroleum Exploration and Development, 49(4): 670-682. (in Chinese with English abstract [20] YANG Z, HOU L H, LIN S H, et al., 2018. Geologic characteristics and exploration potential of tight oil and shale oil in Lucaogou Formation in Jimsar sag[J]. China Petroleum Exploration, 23(4): 76-85. (in Chinese with English abstract [21] ZHANG C, YU X H, LI S L, et al. , 2017. Sedimentary characteristics and model of outcrop in Jingjingzigou formation of southern Margin, Junggar Basin[J]. Xinjiang Petroleum Geology, 38(5): 544-552, 624. (in Chinese with English abstract [22] ZHANG L, ZHANG M, GAO Y J, et al., 2021. Geochemical characteristics and hydrocarbon generation potential of Permian Lucaogou formation source rocks in Bogda piedmont belt, the southern margin of Junggar basin[J]. China Mining Magazine, 30(12): 183-188. (in Chinese with English abstract [23] ZHANG L C, WU K Y, HE W J, et al., 2018. Structural characteristics and diagenetic sealing of faults in the Beisantai swell, Junggar Basin[J]. Journal of Geomechanics, 24(5): 607-616. (in Chinese with English abstract [24] ZHENG M L, TIAN A J, YANG T Y, et al., 2018. Structural evolution and hydrocarbon accumulation in the eastern Junggar Basin[J]. Oil & Gas Geology, 39(5): 907-917. (in Chinese with English abstract [25] ZHI D M, TANG Y, ZHENG M L, et al. , 2018. Discovery, distribution and exploration practice of large oil provinces of above-source conglomerate in Mahu Sag[J]. Xinjiang Petroleum Geology, 39(1): 1-8, 22. (in Chinese with English abstract [26] ZHI D M, SONG Y, HE W J, et al., 2019a. Geological characteristics, resource potential and exploration direction of shale oil in Middle-Lower Permian, Junggar basin[J]. Xinjiang Petroleum Geology, 40(4): 389-401. (in Chinese with English abstract [27] ZHI D M, TANG Y, YANG Z F, et al., 2019b. Geological characteristics and accumulation mechanism of continental shale oil in Jimusaer sag, Junggar Basin[J]. Oil & Gas Geology, 40(3): 524-534. (in Chinese with English abstract [28] ZHI D M, TANG Y, HE W J, et al., 2021. Orderly coexistence and accumulation models of conventional and unconventional hydrocarbons in Lower Permian Fengcheng Formation, Mahu sag, Junggar Basin[J]. Petroleum Exploration and Development, 48(1): 38-51. (in Chinese with English abstract [29] ZHI D M, LI J Z, ZHANG W, et al., 2022. Exploration breakthrough and its significance of Jingjingzigou Formation in Shuangji tectonic zone of Jimsar sag in Junggar Basin[J]. Acta Petrolei Sinica, 43(10): 1383-1394. (in Chinese with English abstract [30] ZHI D M, LI J Z, YANG F, et al., 2023. Geological characteristics and exploration and development practice of the Permian full oil and gas system in Jimsar Sag, Junggar Basin[J]. China Petroleum Exploration, 28(4): 14-23. (in Chinese with English abstract [31] ZHI D M, CHEN X, YANG R Z, et al., 2024. Exploration practice and total petroleum system in residual Marine Sag, eastern Junggar Basin[J]. Xinjiang Petroleum Geology, 45(2): 127-138. (in Chinese with English abstract [32] 曹剑,雷德文,李玉文,等,2015. 古老碱湖优质烃源岩:准噶尔盆地下二叠统风城组[J]. 石油学报,36(7):781-790. doi: 10.7623/syxb201507002 [33] 陈春勇,谭强,张金风,等,2015. 吉木萨尔凹陷二叠系梧桐沟组一段沉积演化规律[J]. 新疆石油地质,36(2):169-173,213. [34] 丁超,王佳玮,2015. 准噶尔盆地吉木萨尔凹陷二叠系梧桐沟组沉积演化规律[J]. 中国石油勘探,20(3):22-29. doi: 10.3969/j.issn.1672-7703.2015.03.003 [35] 何文军,钱永新,赵毅,等,2021. 玛湖凹陷风城组全油气系统勘探启示[J]. 新疆石油地质,42(6):641-655. [36] 匡立春,王霞田,郭旭光,等,2015. 吉木萨尔凹陷芦草沟组致密油地质特征与勘探实践[J]. 新疆石油地质,36(6):629-634. [37] 雷德文,阿布力米提,唐勇,等,2014. 准噶尔盆地玛湖凹陷百口泉组油气高产区控制因素与分布预测[J]. 新疆石油地质,35(5):495-499. [38] 雷德文,陈刚强,刘海磊,等,2017. 准噶尔盆地玛湖凹陷大油(气)区形成条件与勘探方向研究[J]. 地质学报,91(7):1604-1619. doi: 10.3969/j.issn.0001-5717.2017.07.012 [39] 李建忠,陈旋,杨润泽,等,2023. 准噶尔盆地东部吉南凹陷二叠系油气地质条件与源下成藏特征[J]. 石油勘探与开发,50(3):491-503. doi: 10.11698/PED.20220818 [40] 梁世君,罗劝生,康积伦,等,2021. 准噶尔盆地吉南凹陷萨探1井风险勘探突破及意义[J]. 中国石油勘探,26(4):72-83. doi: 10.3969/j.issn.1672-7703.2021.04.006 [41] 马超,吴孔友,裴仰文,等,2019. 准噶尔盆地东部构造特征及演化定量分析[J]. 地质力学学报,25(3):313-323. doi: 10.12090/j.issn.1006-6616.2019.25.03.029 [42] 任新成,修金磊,刘林,等,2023. 准噶尔东部晚古生代—中生代构造样式、变形序列及棋盘格构造的形成过程与机制[J]. 地质力学学报,29(2):155-173. doi: 10.12090/j.issn.1006-6616.2022113 [43] 谭强,张小红,岳红星,等,2018. 准噶尔盆地吉木萨尔凹陷北部二叠系梧桐沟组沉积模式研究[J]. 新疆石油天然气,14(4):1-7. doi: 10.3969/j.issn.1673-2677.2018.04.002 [44] 唐勇,郭文建,王霞田,等,2019. 玛湖凹陷砾岩大油区勘探新突破及启示[J]. 新疆石油地质,40(2):127-137. [45] 唐勇,曹剑,何文军,等,2021. 从玛湖大油区发现看全油气系统地质理论发展趋势[J]. 新疆石油地质,42(1):1-9. [46] 王剑,刘金,潘晓慧,等,2024. 吉木萨尔凹陷芦草沟组页岩油生烃母质及其生烃机理[J]. 新疆石油地质,45(3):253-261. [47] 王小军,王婷婷,曹剑,2018. 玛湖凹陷风城组碱湖烃源岩基本特征及其高效生烃[J]. 新疆石油地质,39(1):9-15. [48] 王小军,杨智峰,郭旭光,等,2019. 准噶尔盆地吉木萨尔凹陷页岩油勘探实践与展望[J]. 新疆石油地质,40(4):402-413. [49] 杨有星,张君峰,张金虎,等,2022. 新疆博格达山周缘中上二叠统与中上三叠统沉积特征及其主控因素[J]. 石油勘探与开发,49(4):670-682. doi: 10.11698/PED.20210611 [50] 杨智,侯连华,林森虎,等,2018. 吉木萨尔凹陷芦草沟组致密油、页岩油地质特征与勘探潜力[J]. 中国石油勘探,23(4):76-85. doi: 10.3969/j.issn.1672-7703.2018.04.009 [51] 张驰,于兴河,李顺利,等,2017. 准噶尔盆地南缘井井子沟组露头沉积特征及模式[J]. 新疆石油地质,38(5):544-552,624. [52] 张丽辰,吴孔友,何文军,等,2018. 准噶尔盆地北三台凸起断裂结构特征及成岩封闭作用[J]. 地质力学学报,24(5):607-616. doi: 10.12090/j.issn.1006-6616.2018.24.05.061 [53] 张林,张敏,高永进,等,2021. 准噶尔盆地南缘博格达山前带二叠系芦草沟组烃源岩地球化学特征及生烃潜力研究[J]. 中国矿业,30(12):183-188. doi: 10.12075/j.issn.1004-4051.2021.12.026 [54] 郑孟林,田爱军,杨彤远,等,2018. 准噶尔盆地东部地区构造演化与油气聚集[J]. 石油与天然气地质,39(5):907-917. doi: 10.11743/ogg20180506 [55] 支东明,唐勇,郑孟林,等,2018. 玛湖凹陷源上砾岩大油区形成分布与勘探实践[J]. 新疆石油地质,39(1):1-8,22. [56] 支东明,宋永,何文军,等,2019a. 准噶尔盆地中—下二叠统页岩油地质特征、资源潜力及勘探方向[J]. 新疆石油地质,40(4):389-401. [57] 支东明,唐勇,杨智峰,等,2019b. 准噶尔盆地吉木萨尔凹陷陆相页岩油地质特征与聚集机理[J]. 石油与天然气地质,40(3):524-534. [58] 支东明,唐勇,何文军,等,2021. 准噶尔盆地玛湖凹陷风城组常规-非常规油气有序共生与全油气系统成藏模式[J]. 石油勘探与开发,48(1):38-51. doi: 10.11698/PED.2021.01.04 [59] 支东明,李建忠,张伟,等,2022. 准噶尔盆地吉木萨尔凹陷双吉构造带井井子沟组勘探突破及意义[J]. 石油学报,43(10):1383-1394. [60] 支东明,李建忠,杨帆,等,2023. 准噶尔盆地吉木萨尔凹陷二叠系全油气系统地质特征与勘探开发实践[J]. 中国石油勘探,28(4):14-23. doi: 10.3969/j.issn.1672-7703.2023.04.002 [61] 支东明,陈旋,杨润泽,等,2024. 准噶尔盆地东部残留海相凹陷勘探实践及全油气系统[J]. 新疆石油地质,45(2):127-138. -
