Deformation characteristics and 40Ar/39Ar geochronology of the Shili ductile shear zone at the northwestern margin of the Yunkai Block
-
摘要: 云开地块属华南板块前寒武变质结晶基底之一，为了解云开地区印支期构造变形特征，选取位于云开地块西北缘的十里韧性剪切带，通过野外调查、有限应变测量、运动学涡度分析及同位素年代学研究，表明其为一总体呈北西西—南东东走向、具有北北东向逆冲性质的剪切带，表现为韧性剪切变形、脆−韧性变形到褶皱变形的变形演化过程。韧性剪切变形同期形成的糜棱岩中，白云母40Ar/39Ar坪年龄为232±2.3 Ma（MSWD=3.65），付林指数K为0.06～0.77，罗德参数ν为0.13～0.89，变形强度Es为0.41～0.51，运动学涡度值Wk为0.70～0.78，表明其为平面压扁型应变，其受到纯剪切与简单剪切相当的一般剪切作用。研究表明十里韧性剪切带形成于印支地块与华南地块北东—南西向拼合碰撞的远程效应。Abstract:
Objective The Yunkai Massif is one of the Precambrian metamorphic crystalline basements within the South China Block. To better understand the Indosinian deformation characteristics in the Yunkai area, the Shili ductile shear zone at the northwestern margin of the Yunkai Massif was selected for this study. Methods Through detailed field investigations, finite strain measurements, kinematic vorticity analyses, and 40Ar/39Ar geochronology, the structural characteristics and evolutionary process of the shear zone were constrained. Results The Shili ductile shear zone generally strikes WNW–ESE with NNE-directed thrusting. It has undergone four phases of deformation. Among which, the D2 to D4 deformations all indicate movement from SSW to NNE. D2 to D4 formed under a unified tectonic stress field, reflecting an evolution from ductile shear through brittle-ductile deformation to folding during the Late Triassic. Mylonites formed synchronously with the ductile shear deformation yield a muscovite 40Ar/39Ar plateau age of 232 ± 2.3 Ma (MSWD = 3.65). The Flinn index (K) is 0.06–0.77, the Lode parameter (ν) is 0.13–0.89, the Effective strain (Es) is 0.41–0.51, and the kinematic vorticity value (Wk) is 0.70–0.78. These parameters indicate a flattening-type strain regime dominated by general shear, with comparable contributions of pure shear and simple shear. The dynamic recrystallization of minerals suggests that the deformation environment reached the upper greenschist facies. Conclusions This study indicates that the mylonitization, crenulation cleavage development, and folding within the Shili ductile shear zone were dynamically driven by the propagation of far-field stress resulting from the NE–SW collision between the Indochina and South China blocks during the Indosinian period. Significance These findings provide critical constraints on the Indosinian tectono-thermal event and its geodynamic framework in South China. -
Key words:
- South China Block /
- Yunkai Block /
- ductile shear zone /
- finite strain /
- kinematic vorticity /
- 40Ar/39Ar geochronology
-

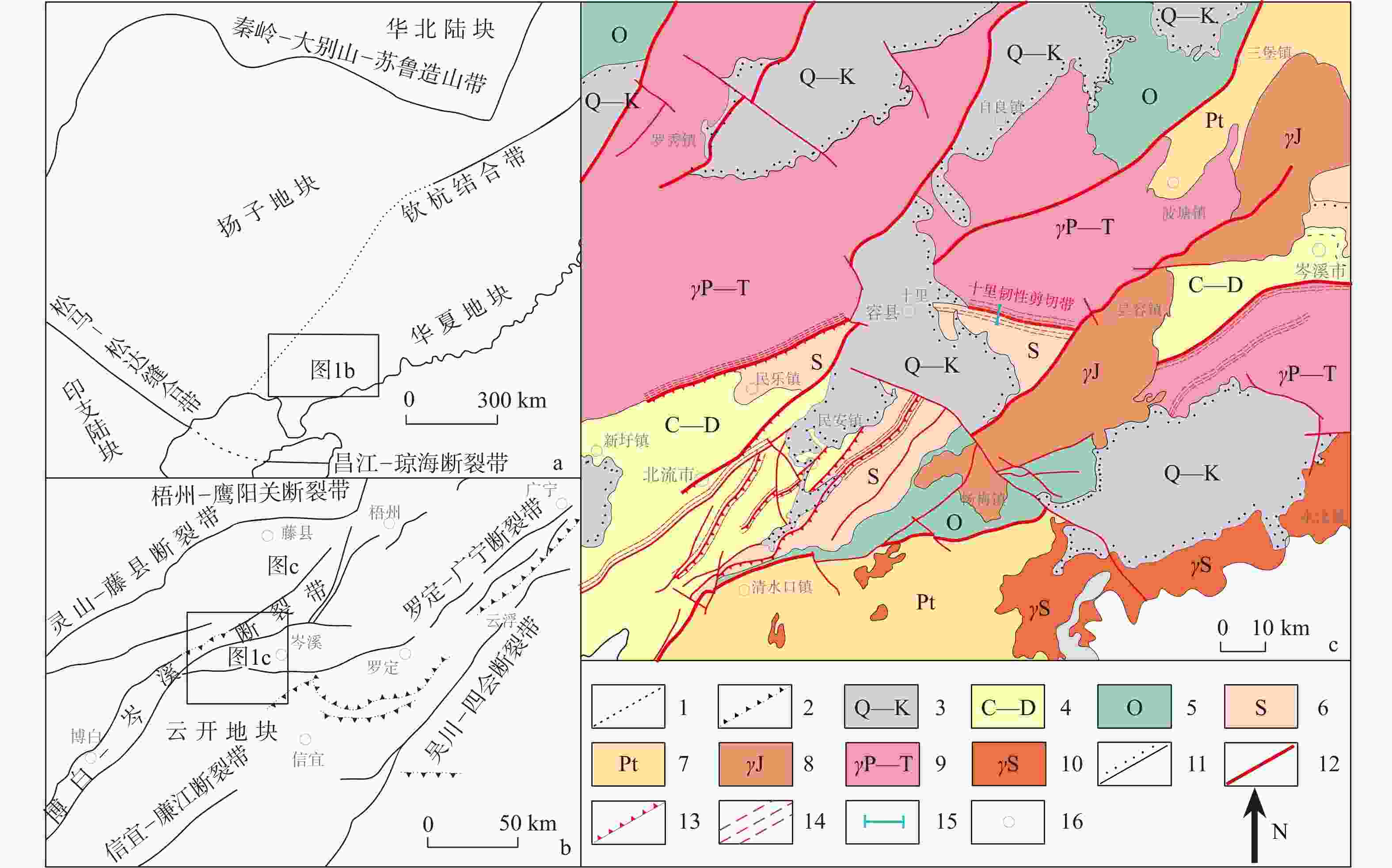

图 1 十里韧性剪切带大地构造位置及地质简图
1—推测界线；2—逆冲推覆带；3—第四系—白垩系；4—石炭系—泥盆系；5—奥陶系；6—志留系；7—元古界；8—燕山期花岗岩；9—印支期花岗岩；10—加里东期花岗岩；11—不整合界线；12—断层（裂）；13—逆冲推覆断层；14—韧性剪切带；15—剖面位置；16—城镇位置a—华南大地构造简图；b—云开地区大地构造简图；c—容县区域地质简图
Figure 1. Tectonic setting and geological sketch map of the Shili ductile shear zone
(a) Simplified tectonic map of South China; (b) Simplified tectonic map of the Yunkai area; (c) Simplified regional geological map of Rongxian County1–inferred boundary; 2–thrust-nappe belt; 3–Cretaceous–Quaternary; 4–Carboniferous–Devonian; 5–Ordovician; 6–Silurian; 7–Proterozoic; 8–Yanshanian granite; 9–Indosinian granite; 10–Caledonian granite; 11–unconformity; 12–fault; 13–thrust fault; 14–ductile shear zone; 15–cross section line; 16–town

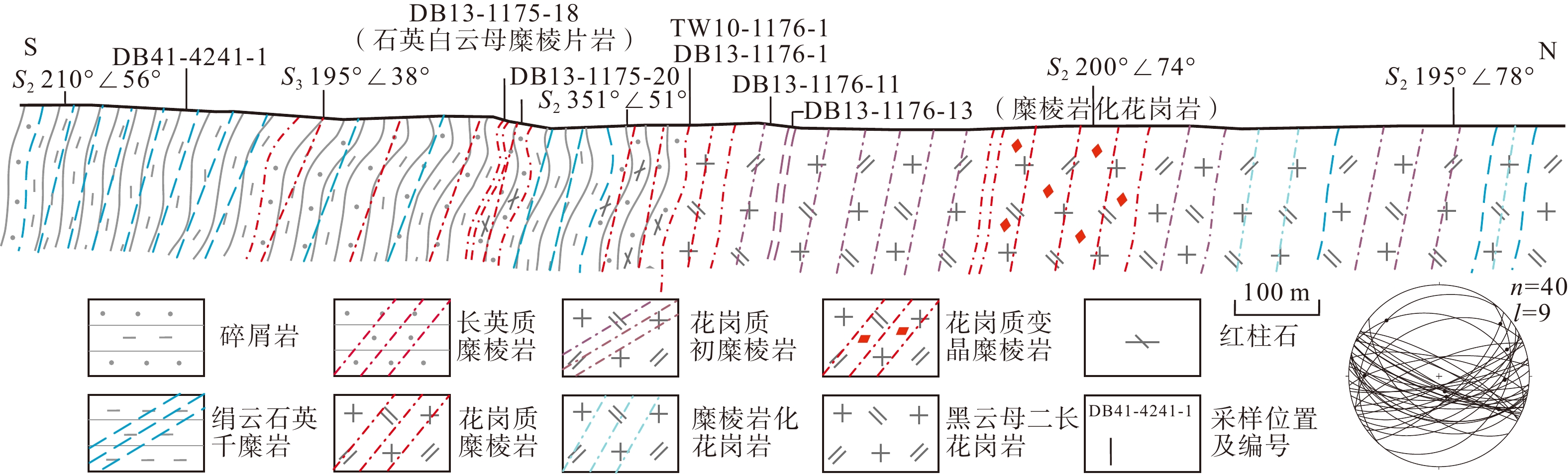

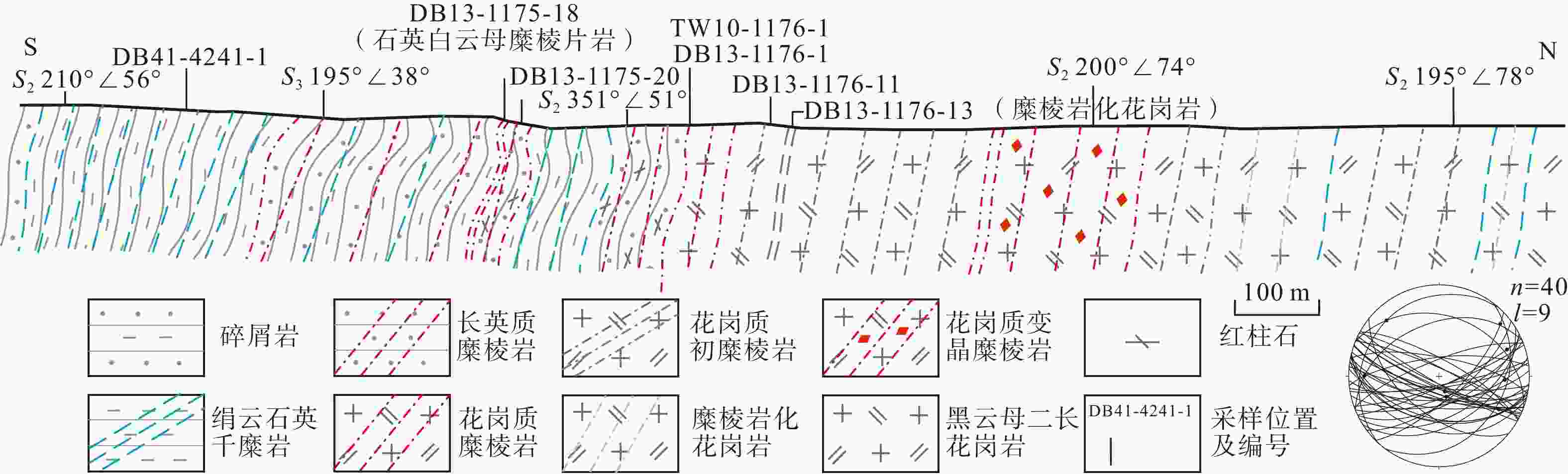

图 2 十里韧性剪切带实测剖面图
S2—D2期变形剪切面理；S3—D3期变形剪切面理；n—面理数量；l—线理数量；DB41-4241-1等为样品编号
Figure 2. Measured cross-section across the Shili ductile shear zone
S2–D2 shear foliation; S3–D3 shear foliation; n–number of foliations; l–number of lineations; DB41-4241-1, etc. represent sample numbers
图 3 十里韧性剪切带中残存的D1期变形信息及特征
L1—D1期线理；L3—D3期线理；Qtz—石英；Ms—白云母a—D1期变形形成的尖棱褶皱；b—D1期变形形成的石英脉呈不对称褶皱，指示右行走滑剪切；c—多期皱纹线理；d—保留D1期糜棱面理的旋转碎斑
Figure 3. Relic structural features of D1 deformation in the Shili ductile shear zone
(a) D1 chevron folds; (b) D1 asymmetric folds, indicating dextral strike-slip shear; (c) Polyphase crenulation lineation; (d) Rotated porphyroclasts preserving D1 mylonitic foliationL1–D1 lineation; L3–D3 lineation; Qtz–quartz; Ms–muscovite
图 4 十里韧性剪切带中发育的D2期变形信息及特征
Qtz—石英；Ms—白云母；Bi—黑云母；Se—绢云母；Pl—长石；Tur—电气石；DB13-1176-3等为样品编号a—碎屑岩中白云母长英质糜棱岩；b—花岗质初糜棱岩；c—花岗质糜棱岩中电气石碎斑；d—石英书斜式构造；e—石英晶粒多向波状消光；f—石英晶粒带状消光；g—棋盘格式石英亚晶粒；h—石英亚晶粒旋转重结晶；i—石英膨凸重结晶；j—石英静态恢复重结晶及矩形条带；k—石英核幔构造（核部带状消光）；l— 斜长石晶内裂隙；m—长石书斜式构造；n—斜长石双向机械双晶及核幔构造；o—斜长石σ型碎斑；p—长石核幔构造及石香肠构造；q—长英质糜棱岩中白云母鱼及波状消光；r—白云母扭折带；s—花岗质超糜棱岩中白云母鱼；t—白云母压力影构造；u—自形电气石及晶内裂隙；v—S-C组构；w—不对称石英褶皱条带；x—花岗质变晶糜棱岩中长石碎斑退变质
Figure 4. Microstructural features of D2 deformation in the Shili ductile shear zone
(a) Muscovite-bearing felsic mylonite derived from clastic rocks; (b) Granitic protomylonite; (c) Tourmaline porphyroclasts in granitic mylonite; (d) Bookshelf structure in quartz; (e) Multidirectional undulose extinction in quartz grains; (f) Banded extinction in quartz grains; (g) Chessboard subgrains in quartz; (h) Subgrain rotation recrystallization in quartz; (i) Bulging recrystallization in quartz; (j) Static recovery recrystallization and rectangular ribbons in quartz; (k) Core-mantle structure in quartz (core showing banded extinction); (l) Intracrystalline fractures in plagioclase; (m) Bookshelf structure in feldspar; (n) Bilateral mechanical twinning and core-mantle structure in plagioclase; (o) σ-type porphyroclasts in plagioclase; (p) Core-mantle structure and boudinage in feldspar; (q) Mica fish and undulose extinction in muscovite within felsic mylonite; (r) Kink bands in muscovite; (s) Mica fish in granitic ultramylonite; (t) Pressure shadows around muscovite; (u) Euhedral tourmaline with intracrystalline fractures; (v) S–C fabric; (w) Asymmetric folded quartz ribbons; (x) Retrograde alteration of feldspar porphyroclasts in granitic blastomylonite;Qtz–quartz; Ms–muscovite; Bi–biotite; Se–sericite; Pl–feldspar; Tur–tourmaline; DB13-1176-3, etc. represent sample numbers
图 5 十里韧性剪切带中保存的D3期变形信息及特征
Sc—剪切面理；S—膝状褶皱两翼形成的面理a—千糜岩中的皱纹线理及不对称膝状褶皱；b—千糜岩中交面线理；c—镜下连续膝状褶皱
Figure 5. Structural features of D3 deformation in the Shili ductile shear zone
(a) Crenulation lineation and asymmetric kink folds in phyllonite; (b) Intersection lineation in phyllonite; (c) Microscopic continuous kink foldsSc–shear foliation; S–foliation developed on kink-fold limbs

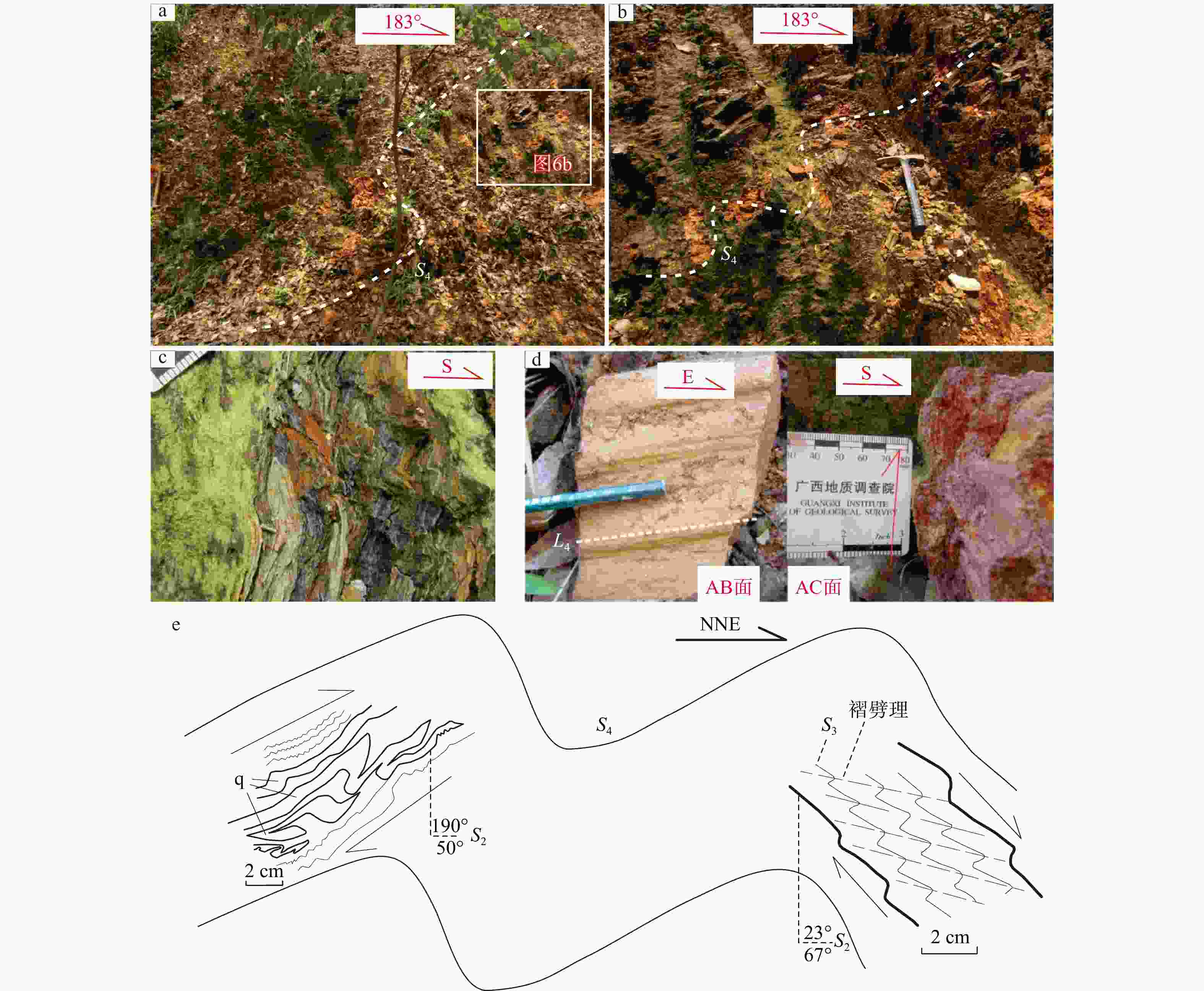

图 6 十里韧性剪切带中保存的D4期变形信息及特征
L4—D4期线理；q—石英脉；S2—D2期剪切面理；S3—D3期剪切面理；S4—D4期剪切面理a—合浦组发育的顺层褶皱；b—合浦组不同能干性岩层发育的顺层褶皱；c—千糜岩中的褶皱变形；d—千糜岩中的窗棂构造；e—D4期变形导致早期面理褶皱变形
Figure 6. Structural features of D4 deformation in the Shili ductile shear zone
(a) Bedding-parallel folds developed in the Hepu Formation; (b) Bedding-parallel folds in layers of varying competence in the Hepu Formation;(c) Fold deformation in phyllonite; (d) Mullion structure in phyllonite; (e) Folding of earlier foliation caused by D4 deformationL4–D4 lineation; q–quartz veins; S2–D2 shear foliation; S3–D3 shear foliation; S4–D4 shear foliation

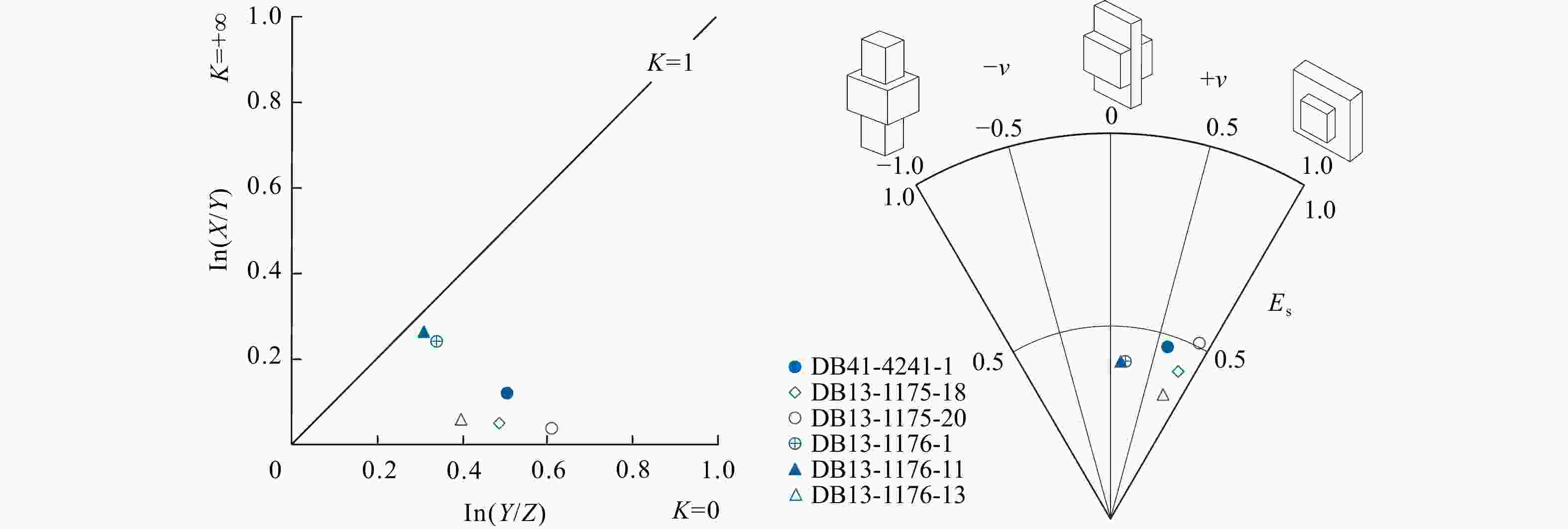

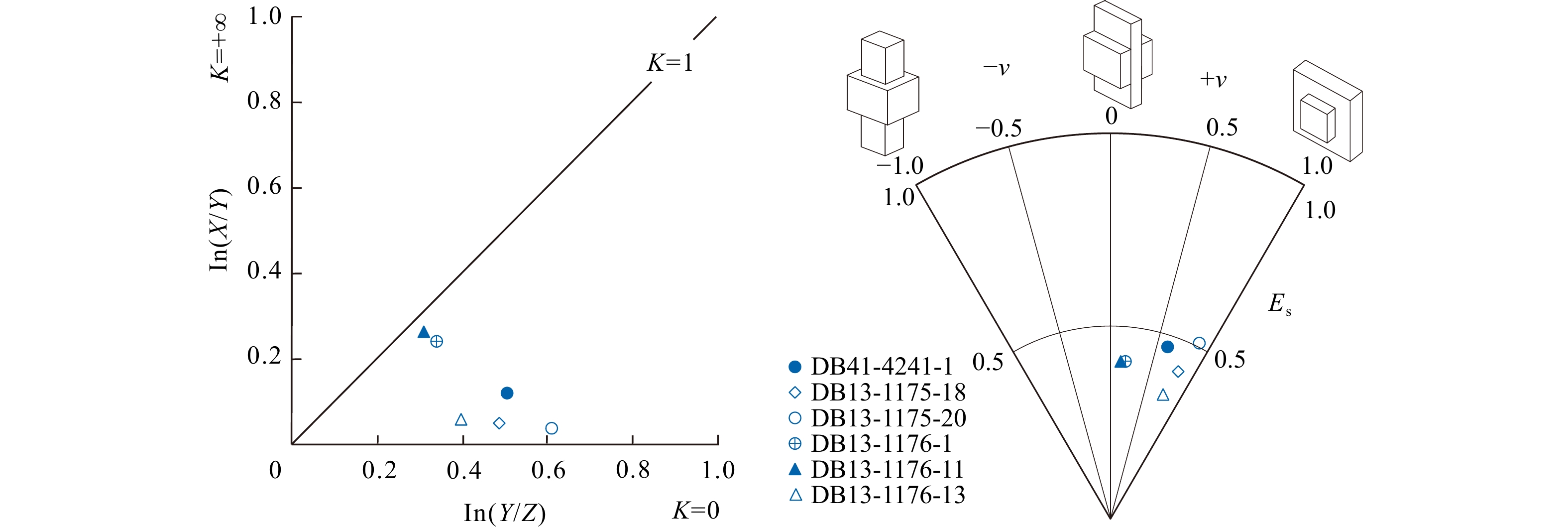

图 7 十里韧性剪切带付林图解与霍塞克图解
In（X/Y）—X、Y 2个主轴长度比的对数值；In（Y/Z）—Y、Z 2个主轴长度比的对数值；K—付林指数；ν—罗德参数；Es—变形强度
Figure 7. Flinn and Hossack diagrams for the Shili ductile shear zone
ln(X/Y)–natural logarithm of the strain axial ratio X/Y; ln(Y/Z)–natural logarithm of the strain axial ratio of Y/Z; K–Flinn index; ν–Lode parameter; Es–strain intensity

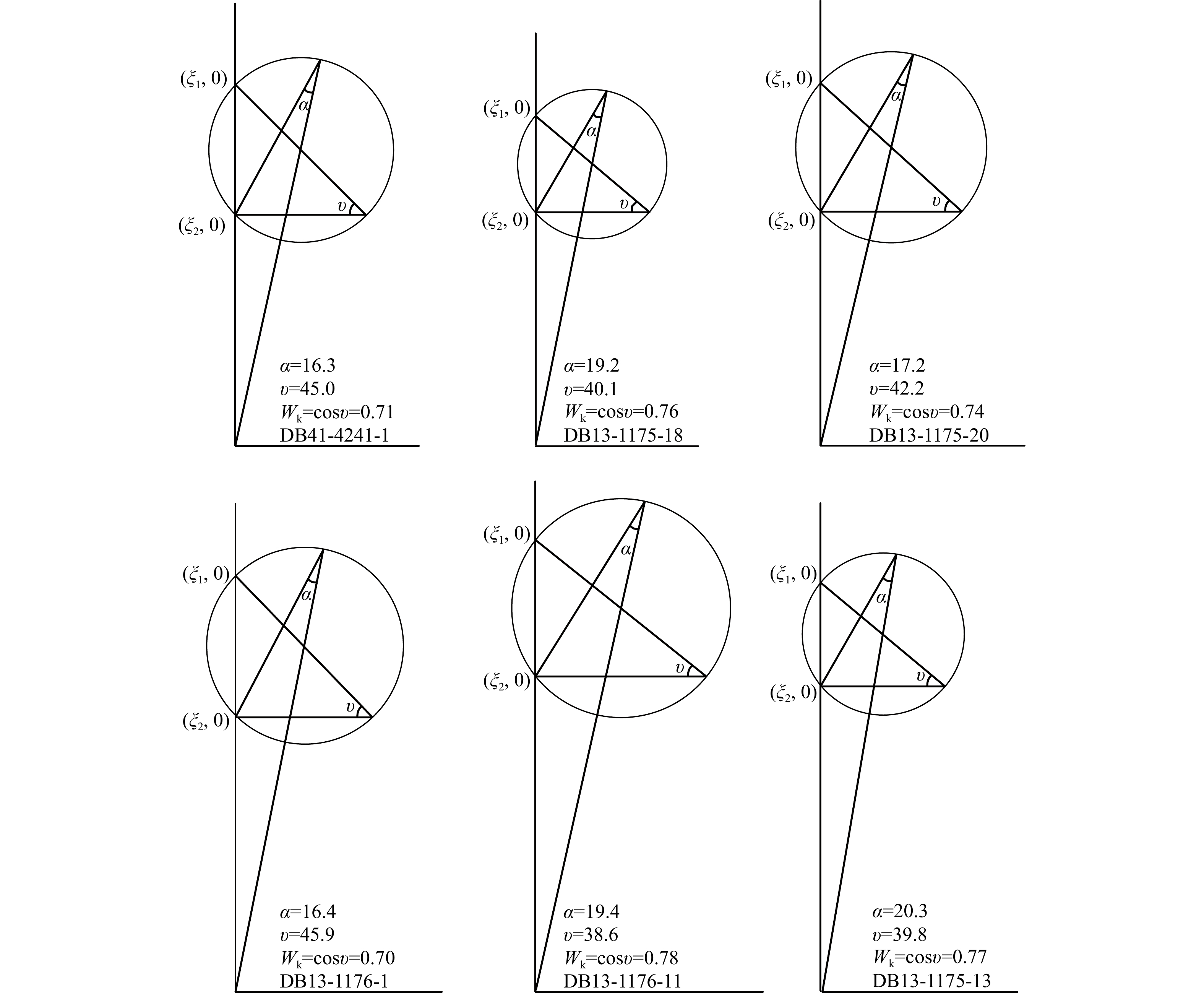

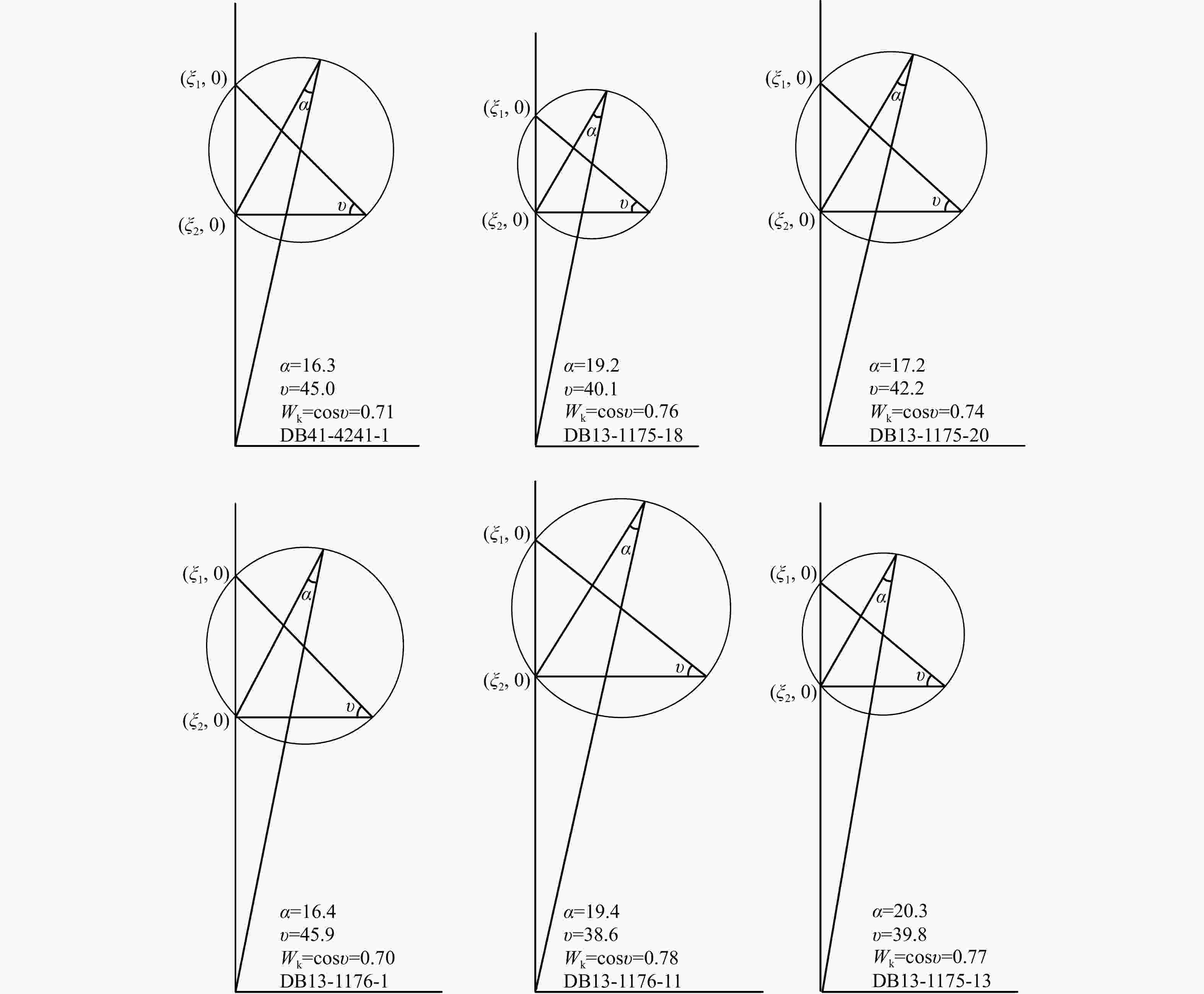

图 8 十里韧性剪切带求解运动学涡度的极摩尔圆
（ξ1，0）表示平行剪切带边界的特征向量；（ξ2，0）表示与剪切带边界斜交的特征向量；α为有限应变椭圆的长轴与剪切面之间的夹角；υ为主变形面2个特征向量的夹角；Wk为运动学涡度
Figure 8. Kinematic vorticities determination using polar Mohr circles for the Shili ductile shear zone
(ξ1, 0) represents the eigenvector parallel to the shear zone boundary; (ξ2, 0) represents the eigenvector oblique to the shear zone boundary; α is the angle between the long axis of the finite-strain ellipse and the shear plane, υ is the angle between the two eigenvectors of the principal deformation plane, and Wk is the kinematic vorticity.

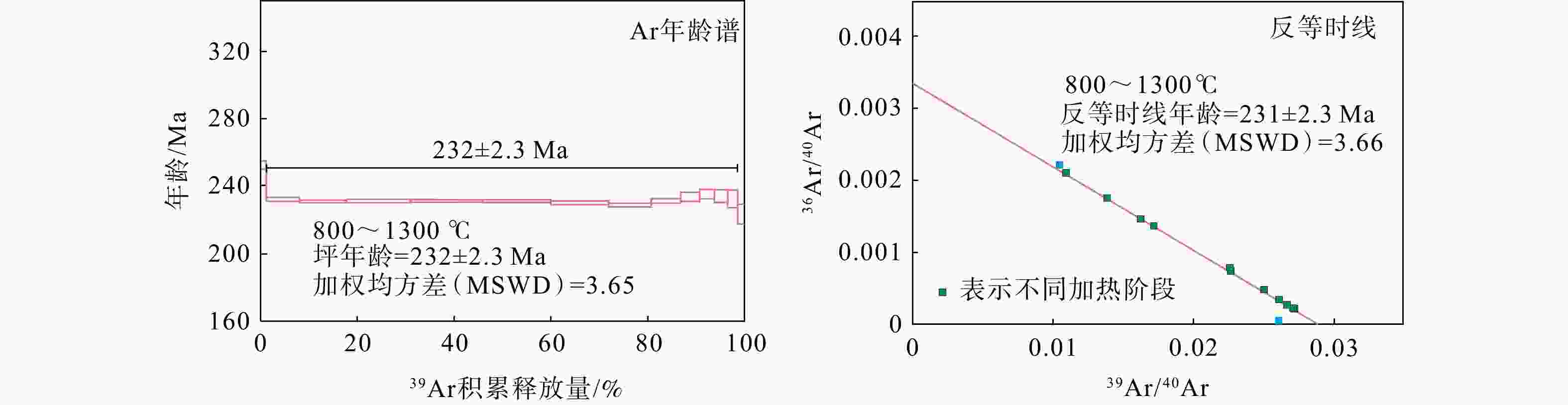

图 9 十里韧性剪切带白云母40Ar/39Ar年龄谱及反等时线图
Figure 9. Muscovite40Ar/39Ar age spectrum and inverse isochron diagrams for the Shili ductile shear zone
表 1 十里韧性剪切带三维有限应变测量参数
Table 1. Three-dimensional finite strain parameters of the Shili ductile shear zone
样品编号 岩石定名 长短轴轴比值 应变主轴相对长短 付林指数 主应变 罗德参数 变形强度 RXY RXZ RYZ X Y Z K ε1 ε2 ε3 ν Es DB41-4241-1 绢云石英千糜岩 1.13 1.87 1.66 1.28 1.14 0.69 0.24 0.25 0.13 −0.38 0.61 0.47 DB13-1175-18 石英白云母糜棱片岩 1.05 1.71 1.63 1.22 1.16 0.71 0.10 0.19 0.15 −0.34 0.82 0.42 DB13-1175-20 白云母长英质糜棱岩 1.04 1.91 1.84 1.25 1.21 0.66 0.06 0.23 0.19 −0.42 0.89 0.51 DB13-1176-1 花岗质糜棱岩 1.27 1.78 1.41 1.31 1.04 0.74 0.69 0.27 0.03 −0.31 0.18 0.41 DB13-1176-11 花岗质初糜棱岩 1.29 1.78 1.38 1.32 1.02 0.74 0.77 0.28 0.02 −0.30 0.13 0.41 DB13-1176-13 糜棱岩化中细粒黑云母二长花岗岩 1.06 1.58 1.49 1.19 1.12 0.75 0.14 0.17 0.11 −0.28 0.76 0.35
下载: 导出CSV
表 2 十里韧性剪切带运动学涡度
Table 2. Kinematic vorticity data for the Shili ductile shear zone
样品编号 测量颗粒数 α/（°） υ/（°） Wk DB41-4241-1 46 16.3 45.0 0.71 DB13-1175-18 58 19.2 40.1 0.76 DB13-1175-20 56 17.2 42.2 0.74 DB13-1176-1 58 16.4 45.9 0.70 DB13-1176-11 54 19.4 38.6 0.78 DB13-1176-13 31 20.3 39.8 0.77 注：α为有限应变椭圆的长轴与剪切面之间的夹角；υ为主变形面2个特征向量的夹角；Wk为运动学涡度
下载: 导出CSV
表 3 十里韧性剪切带白云母40Ar/39Ar阶段升温测年数据
Table 3. Muscovite 40Ar/39Ar step-heating geochronological data for the Shili ductile shear zone
阶段 T/℃ 36Ara 37Arca 38Arcl 39Ark 40Arr 年龄/Ma 误差2σ/Ma 40Ar/% 39Ar/% 样品编号：TW10-1176-1 白云母 样品重量=15.46 mg 照射参数J=0.00398010±0.00001990 1 700℃ 0.09299 0.0000000 0.634577 57.2790 2195.35 253.1 2.52 98.74 1.44 2 800℃ 2.11811 0.0000000 3.576786 265.7169 9811.06 232.5 0.95 93.61 6.67 3 840℃ 3.03193 0.0000000 5.549519 393.6615 14451.25 231.7 0.82 93.79 9.88 4 880℃ 4.32288 0.0000000 7.345234 520.7819 19190.96 231.5 0.77 93.33 13.07 5 920℃ 6.04426 0.0000000 8.656524 590.5360 22129.62 231.8 0.80 91.92 14.82 6 960℃ 7.29988 0.0000000 8.563680 558.6715 21376.94 231.5 0.83 89.90 14.02 7 1000℃ 9.25240 0.0000000 8.013721 483.8499 19319.83 230.7 0.90 85.84 12.15 8 1040℃ 12.05228 0.0000000 6.643168 348.8783 15441.45 229.3 1.16 76.92 8.76 9 1080℃ 7.74461 0.0000000 4.361738 236.6086 10431.43 231.6 1.50 78.05 5.94 10 1120℃ 12.65653 0.0000000 4.313819 160.1427 9314.91 234.1 2.21 59.84 4.02 11 1160℃ 10.99917 0.0000000 3.447678 122.2442 7534.32 235.6 2.77 56.85 3.07 12 1200℃ 13.67260 0.0000000 3.928635 108.3149 7816.15 234.4 3.38 48.30 2.72 13 1300℃ 15.33798 0.0000000 3.804958 79.7868 7291.23 232.6 5.11 37.83 2.00 14 1400℃ 12.10923 0.0000000 2.680966 57.3454 5479.13 223.6 5.72 34.69 1.44 坪年龄=232±2.3 Ma（MSWD=3.65）；反等时线年龄=231±2.3 Ma 注：36Ara代表来自大气的36Ar，用于校正大气混入的40Ar；37Arca代表来自钙（Ca） 的37Ar，由40Ca经中子照射生成，用于监测富钙矿物；38Arcl代表来自氯（Cl） 的38Ar，由37Cl经中子照射生成，用于监测富氯矿物或流体；39Ark代表来自钾（K） 的39Ar，由39K经中子照射生成，代表样品中K的含量；40Arr代表放射成因的40Ar，即由40K衰变产生的部分，是计算年龄的直接依据
下载: 导出CSV
-
[1] BANERJEE S, MAITY S, RAWAT A, et al., 2026. Quantifying finite strain in the poly-deformed Lansdowne Klippe, Garhwal Himalaya, India: an appraisal of popular strain estimation techniques[J]. Journal of Structural Geology, 204: 105585. doi: 10.1016/j.jsg.2025.105585 [2] CHEN G K, ZHANG J, ZHAO C, et al., 2026. Polyphase deformation in the southernmost Cathaysia Block: an overprinting record from the Caledonian to Indosinian tectonothermal events[J]. Acta Petrologica Sinica, 42(7): 2431-2448. (in Chinese with English abstract) [3] CHEN W, ZHANG Y, ZHANG Y Q, et al., 2006. Late Cenozoic episodic uplifting in southeastern part of the Tibetan Plateau-evidence from Ar-Ar thermochronology[J]. Acta Petrologica Sinica, 22(4): 867-872. (in Chinese with English abstract) [4] CHEN X Y, WANG Y J, FAN W M, et al., 2006a. Microstructure characteristics of NE trend ductile shear zones of southwestern Hainan: constraints from 40Ar-39Ar geochronology[J]. Geochimica, 35(5): 479-488. (in Chinese with English abstract) [5] CHEN X Y, WANG Y J, WEI M, et al., 2006b. Microstructural characteristics of the NW-trending shear zones of Gong’ai region in Hainan island and its 40Ar-39Ar geochronological constraints[J]. Geotectonica et Metallogenia, 30(3): 312-319. (in Chinese with English abstract) [6] CHU Y, FAURE M, LIN W, et al., 2012. Tectonics of the Middle Triassic intracontinental Xuefengshan Belt, South China: New insights from structural and chronological constraints on the basal décollement zone[J]. International Journal of Earth Sciences, 101(8): 2125-2150. doi: 10.1007/s00531-012-0780-5 [7] DING R X, YU P P, HU G M, et al., 2018. Thermochronology of Pangxidong fault zone in southern section of Qin-Hang metallogenic belt[J]. Earth Science, 43(6): 1830-1838. (in Chinese with English abstract) [8] FENG P, DENG H, ZHANG Y, et al., 2024. Pressure–temperature–time path of ultrahigh-pressure metamorphic terranes constrained by zircon petrochronology: a case study of orthogneisses from the northern Sulu belt, China[J]. Journal of Asian Earth Sciences, 259: 105877. doi: 10.1016/j.jseaes.2023.105877 [9] Guangxi Institute of Regional Geological Survey, 2022. Regional geology of China, Guangxi Zhuang Autonomous Region [M]. Beijing: Geological Publishing House, 12. (in Chinese) [10] GUO S Y, HUANG X Q, NONG J N, et al., 2020. Deformation characteristics and 40Ar-39Ar age of the Sanbao ductile shear zone on the northwestern margin of Yunkai block, South China[J]. Geotectonica et Metallogenia, 44(3): 357-366. (in Chinese with English abstract) [11] HAU B V, KIM Y, JEONG Y J, et al., 2026. Metamorphic evolution and tectonic implications of high-pressure metapelites from the Song Ma suture zone, between the South China and Indochina cratons[J]. Journal of Asian Earth Sciences, 295: 106827. doi: 10.1016/j.jseaes.2025.106827 [12] HSÜ K J, LI J L, CHEN H H, et al., 1990. Tectonics of South China: key to understanding west pacific geology[J]. Tectonophysics, 183(1-4): 9-39. doi: 10.1016/0040-1951(90)90186-C [13] KE X Z, ZHOU D, LONG W G, et al., 2018. Indosinian metamorphism and anatexis in Yunkai massif: evidences from zircon geochronology and Hf isotopes of migmatites and gneisses[J]. Earth Science, 43(7): 2249-2275. (in Chinese with English abstract) [14] LI Z X, LI X H, 2007. Formation of the 1300-km-wide intracontinental orogen and postorogenic magmatic province in Mesozoic South China: a flat-slab subduction model[J]. Geology, 35(2): 179-182. doi: 10.1130/G23193A.1 [15] LI Z Y, LIU J L, 2026. Further discussion of kinematic vorticity analysis in ductile shear zone[J/OL]. Geological Review. https://doi.org/10.16509/j.georeview.2026.02.001. (in Chinese with English abstract) [16] LIN S F, XING G F, DAVIS D W, et al., 2018. Appalachian-style multi-terrane Wilson cycle model for the assembly of South China[J]. Geology, 46(4): 319-322. doi: 10.1130/G39806.1 [17] LIN W, WANG Q C, CHEN K, 2008. Phanerozoic tectonics of South China block: new insights from the polyphase deformation in the Yunkai massif[J]. Tectonics, 27(6): TC6004. doi: 10.1029/2007tc002207 [18] LIN W, WANG Y, LIU F, et al., 2025. Indochina orogenic belt and related geodynamics[J]. Science China Earth Sciences, 68(6): 1691-1715.(in Chinese with English abstract) doi: 10.1007/s11430-024-1499-5 [19] PASSCHIER C W, TROUW R A J, 2005. Microtectonics[M]. 2nd ed. Berlin, Heidelberg: Springer: 1-366. [20] SHAO J G, PENG S M, PENG S B, 1995. 40Ar/36Ar-39Ar/36Ar isochron dating for peripheral faults of Yunkai massif[J]. Guangdong Geology, 10(2): 34-40. (in Chinese with English abstract) [21] WANG W B, 2017. Tectono-magmatic evolution of the Shiwandashan structural belt: implications for understanding the Indosinian orogeny in South China[D]. Beijing: China University of Geosciences (Beijing). (in Chinese with English abstract) [22] WANG X D, XU D M, WANG L, et al., 2020. Reworking of indosinian tectono-thermal events in the Yunkai massif: gneissic multi-mineral U-Pb geochronological evidence[J]. Earth Science, 45(5): 1653-1675. (in Chinese with English abstract) [23] WANG Y J, FAN W M, CAWOOD P A, et al., 2007. Indosinian high-strain deformation for the Yunkaidashan tectonic belt, South China: kinematics and 40Ar/39Ar geochronological constraints[J]. Tectonics, 26(6): TC6008. doi: 10.1029/2007tc002099 [24] WANG Y J, FAN W M, ZHANG G W, et al., 2013. Phanerozoic tectonics of the South China Block: key observations and controversies[J]. Gondwana Research, 23(4): 1273-1305. doi: 10.1016/j.gr.2012.02.019 [25] WANG Y J, QIAN X, CAWOOD P A, et al., 2018. Closure of the East Paleotethyan Ocean and amalgamation of the Eastern Cimmerian and Southeast Asia continental fragments[J]. Earth-Science Reviews, 186: 195-230. doi: 10.1016/j.earscirev.2017.09.013 [26] WANG Y J, WANG Y, ZHANG Y Z, et al., 2021. Triassic two-stage intra-continental orogensis of the South China Block, driven by Paleotethyan closure and interactions with adjoining blocks[J]. Journal of Asian Earth Sciences, 206: 104648. doi: 10.1016/j.jseaes.2020.104648 [27] WANG Y J, WANG Y, ZHANG Y Z, et al., 2022. Indosinian deformation in the South China Block and interaction with the adjoining blocks[J]. Geotectonica et Metallogenia, 46(3): 399-415. (in Chinese with English abstract) [28] XIAO Q H, LIU Y, LI T D, et al., 2025. Tracing the deep geological processes of the Mesozoic-Cenozoic oceanic plate on the continental margin of the East Asian continent in China[J]. Earth Science Frontiers, 32(6): 9-28. (in Chinese with English abstract) [29] XU X B, ZHANG Y Q, SHU L S, et al., 2011. La-ICP-MS U-Pb and 40Ar/39Ar geochronology of the sheared metamorphic rocks in the Wuyishan: constraints on the timing of Early Paleozoic and Early Mesozoic tectono-thermal events in SE China[J]. Tectonophysics, 501(1-4): 71-86. doi: 10.1016/j.tecto.2011.01.014 [30] YAN D P, ZHOU M F, SONG H L, et al., 2003. Origin and tectonic significance of a Mesozoic multi-layer over-thrust system within the Yangtze Block (South China)[J]. Tectonophysics, 361(3-4): 239-254. doi: 10.1016/S0040-1951(02)00646-7 [31] YAN D P, ZHANG B, ZHOU M F, et al., 2009. Constraints on the depth, geometry and kinematics of blind detachment faults provided by fault-propagation folds: an example from the Mesozoic fold belt of South China[J]. Journal of Structural Geology, 31(2): 150-162. doi: 10.1016/j.jsg.2008.11.005 [32] YANG W X, 2021. Formation and Propagation of the Nanpanjiang Indosinian Foreland Fold-Thrust Belt and Foreland Basin in South China[D]. Beijing: China University of Geosciences (Beijing). (in Chinese with English abstract) [33] YU K C, SUN S S, DONG Y P, et al., 2025. Structural deformation and geochronology of the ductile shear zone along the southern margin of the Foping dome, South Qinling[J]. Journal of Geomechanics, 31(3): 386-410. (in Chinese with English abstract) [34] ZHANG G W, GUO A L, WANG Y J, et al., 2013. Tectonics of South China continent and its implications[J]. Science China Earth Sciences, 56(11): 1804-1828.(in Chinese with English abstract) doi: 10.1007/s11430-013-4679-1 [35] ZHANG K J, CAI J X, 2009. NE–SW-trending Hepu–Hetai dextral shear zone in southern China: penetration of the Yunkai Promontory of South China into Indochina[J]. Journal of Structural Geology, 31(7): 737-748. doi: 10.1016/j.jsg.2009.04.012 [36] ZHANG X H, HUANG J H, ZHANG B, et al. , 2024. Sensitive corresponding to tectonic transform of South China Block during Mesozoic: a case study on the Wuchuan-Sihui strike-slip fault zone. Acta Petrologica Sinica, 40(12): 3923-3948. (in Chinese with English abstract) [37] ZHANG Y, CHEN W, CHEN K L, et al., 2006. Study on the Ar-Ar age spectrum of diagenetic I/S and the mechanism of 39Ar recoil loss: examples from the clay minerals of P-T boundary in Changxing, Zhejiang Province[J]. Geological Review, 52(4): 556-561. (in Chinese with English abstract) [38] ZHENG Y D, CHANG Z Z, 1985. Finite strain measurement & ductile shear zones[M]. Beijing: Geological Publishing House: 1-185. (in Chinese) [39] ZHENG Y D, WANG T, ZHANG J J, 2008. Theory and practice of kinematic vorticity (Wk)[J]. Earth Science Frontiers, 15(3): 209-220. (in Chinese with English abstract) [40] ZHOU D, LONG W G, KE X Z, et al., 2017. Petrogenesis of the tectonic Mélange on the northern margin of the Yunkai Terrane, South China[J]. Acta Petrologica Sinica, 33(3): 810-830. (in Chinese with English abstract) [41] ZHU B Q, WANG Y X, WANG H F, et al., 1997. Huangshan-Wenzhou geochemical section and its corridor area of lithosphere in Southeast China[J]. Geochimica, 26(2): 6-18. (in Chinese with English abstract) [42] ZHU H Z, TIAN Z H, LIU P H, et al., 2024. Metamorphic P-T-t path of Triassic eclogite from the Rongcheng region, eastern China: implications for the tectonic evolution of Sulu orogenic belt[J]. International Geology Review, 66(14): 2598-2620. doi: 10.1080/00206814.2023.2289049 [43] 陈国楷, 张健, 赵辰, 等, 2026. 华夏地块南缘多期变形记录: 对加里东—印支运动的叠加响应[J]. 岩石学报, 42(7): 2431-2448. [44] 陈文, 张彦, 张岳桥, 等, 2006. 青藏高原东南缘晚新生代幕式抬升作用的Ar-Ar热年代学证据[J]. 岩石学报, 22(4): 867-872. doi: 10.3969/j.issn.1000-0569.2006.04.010 [45] 陈新跃, 王岳军, 范蔚茗, 等, 2006a. 琼西南NE向韧性剪切带构造特征及其40Ar-39Ar年代学约束[J]. 地球化学, 35(5): 479-488. doi: 10.3321/j.issn:0379-1726.2006.05.003 [46] 陈新跃, 王岳军, 韦牧, 等, 2006b. 海南公爱NW向韧性剪切带构造特征及其40Ar-39Ar年代学约束[J]. 大地构造与成矿学, 30(3): 312-319. doi: 10.3969/j.issn.1001-1552.2006.03.006 [47] 丁汝鑫, 虞鹏鹏, 胡光明, 等, 2018. 钦-杭成矿带南段庞西垌断裂带热年代学证据[J]. 地球科学, 43(6): 1830-1838. [48] 广西壮族自治区区域地质调查研究院, 2022. 中国区域地质志: 广西志[M]. 北京: 地质出版社, 12. [49] 郭尚宇, 黄锡强, 农军年, 等, 2020. 云开地块西北缘三堡韧性剪切带变形特征及40Ar-39Ar年代学研究[J]. 大地构造与成矿学, 44(3): 357-366. doi: 10.16539/j.ddgzyckx.2020.03.003 [50] 柯贤忠, 周岱, 龙文国, 等, 2018. 云开地块印支期变质-深熔作用: 混合岩、片麻岩锆石U-Pb年代学和Hf同位素证据[J]. 地球科学, 43(7): 2249-2275. [51] 李泽宇, 刘俊来, 2026. 再论韧性剪切带运动学涡度分析[J/OL]. 地质论评[2026-07-10]. https://doi.org/10.16509/j.georeview.2026.02.001. [52] 林伟, 王印, 刘飞, 等, 2025. 印支造山带及其地球动力学[J]. 中国科学: 地球科学, 55(6): 1737-1765. [53] 邵建国, 彭少梅, 彭松柏, 1995. 云开地块周边断裂带40Ar/36Ar-39Ar/36Ar等时线定年[J]. 广东地质, 10(2): 34-40. [54] 王文宝, 2017. 十万大山构造带变形—岩浆演化过程: 对华南大陆印支运动的限定[D]. 北京: 中国地质大学(北京). [55] 王祥东, 徐德明, 王磊, 等, 2020. 云开地块印支期构造热事件叠加改造: 来自片麻岩中多矿物U-Pb年代学的证据[J]. 地球科学, 45(5): 1653-1675. [56] 王岳军, 王洋, 张玉芝, 等, 2022. 华南印支期变形格局及多陆块围限模型[J]. 大地构造与成矿学, 46(3): 399-415. doi: 10.16539/j.ddgzyckx.2022.03.001 [57] 肖庆辉, 刘勇, 李廷栋, 等, 2025. 中国东部陆缘中、新生代洋板块深地质作用追踪[J]. 地学前缘, 32(6): 9-28. doi: 10.13745/j.esf.sf.2025.8.62 [58] 杨文心, 2021. 华南南盘江印支期前陆褶皱—逆冲带和前陆盆地的形成与扩展[D]. 北京: 中国地质大学(北京). [59] 余坷成, 孙圣思, 董云鹏, 等, 2025. 南秦岭佛坪穹隆南缘韧性剪切带构造变形及其年代学研究[J]. 地质力学学报, 31(3): 386-410. doi: 10.12090/j.issn.1006-6616.2025008 [60] 张国伟, 郭安林, 王岳军, 等, 2013. 中国华南大陆构造与问题[J]. 中国科学: 地球科学, 43(10): 1553-1582. [61] 张献河, 黄建桦, 张波, 等, 2024. 华南板块中生代构造体制转换的最直接响应: 吴川-四会走滑断裂带宏-微观构造解析[J]. 岩石学报, 40(12): 3923-3948. doi: 10.18654/1000-0569/2024.12.14 [62] 张彦, 陈文, 陈克龙, 等, 2006. 成岩混层(I/S)Ar-Ar年龄谱型及39Ar核反冲丢失机理研究: 以浙江长兴地区P-T界线粘土岩为例[J]. 地质论评, 52(4): 556-561. doi: 10.3321/j.issn:0371-5736.2006.04.015 [63] 郑亚东, 常志忠, 1985. 岩石有限应变测量及韧性剪切带[M]. 北京: 地质出版社: 1-185. [64] 郑亚东, 王涛, 张进江, 2008. 运动学涡度的理论与实践[J]. 地学前缘, 15(3): 209-220. doi: 10.3321/j.issn:1005-2321.2008.03.017 [65] 周岱, 龙文国, 柯贤忠, 等, 2017. 云开地块北缘构造混杂岩的岩石成因探讨[J]. 岩石学报, 33(3): 810-830. [66] 朱炳泉, 王一先, 王慧芬, 等, 1997. 黄山-温州地球化学剖面及廊区解析[J]. 地球化学, 26(2): 6-18. -
