纵横波时差耦合作用下地铁车站地震响应分析

潘婷婷 胡雪平 任天翔 徐博

潘婷婷, 胡雪平, 任天翔, 等, 2022. 纵横波时差耦合作用下地铁车站地震响应分析. 地质力学学报, 28 (4): 596-604. DOI: 10.12090/j.issn.1006-6616.2022028
引用本文: 潘婷婷, 胡雪平, 任天翔, 等, 2022. 纵横波时差耦合作用下地铁车站地震响应分析. 地质力学学报, 28 (4): 596-604. DOI: 10.12090/j.issn.1006-6616.2022028
PAN Tingting, HU Xueping, REN Tianxiang, et al., 2022. Seismic response analysis of the subway station structure under the coupling action of P and S seismic waves with the time difference. Journal of Geomechanics, 28 (4): 596-604. DOI: 10.12090/j.issn.1006-6616.2022028
Citation: PAN Tingting, HU Xueping, REN Tianxiang, et al., 2022. Seismic response analysis of the subway station structure under the coupling action of P and S seismic waves with the time difference. Journal of Geomechanics, 28 (4): 596-604. DOI: 10.12090/j.issn.1006-6616.2022028

纵横波时差耦合作用下地铁车站地震响应分析

doi: 10.12090/j.issn.1006-6616.2022028
基金项目:

中国地质调查局地质调查项目 DD20211314

详细信息
    作者简介:

    潘婷婷(1989—),女,讲师,硕士, 主要研究方向混凝土结构和岩土工程。E-mail:760218087@qq.com

    通讯作者:

    胡雪平(1980—),男,高级工程师,学士,主要研究方向地球物理勘查与应用。E-mail:huxueping_430@126.com

  • 中图分类号: P642.22;P694

Seismic response analysis of the subway station structure under the coupling action of P and S seismic waves with the time difference

Funds:

the China Geological Survey DD20211314

  • 摘要: 以北京实测地震波作为输入,运用二维显示有限差分程序对北京地区常见的3层3跨矩形断面结构地铁车站进行了动力模拟分析,探讨了纵横波时差耦合作用下车站结构加速度、位移放大效应及动应力变化规律。计算结果表明地震纵横波时差耦合作用导致浅埋地铁车站结构受力变形过程为:首先纵波作用使得结构产生较大的竖向加速度,导致结构产生一定的正应力;继而纵横波时差耦合作用使得结构产生较大的水平加速度,此时结构内力达到最大,容易使得结构产生较大的拉应力;最终随着地震动力作用逐渐减小至消失,结构内力减小,恢复稳定。在地震动力作用下,地铁车站侧墙、中柱等结构的加速度自下而上均发生放大效应,且竖向加速度的放大程度远高于水平加速度。因地震纵波产生较大的竖向加速度,并且具有较强的放大效应,需重视距离震源较近地区的地下结构竖向抗震性能;而纵横波时差耦合作用下,结构的内力往往能达到最大值,是地下结构发生破坏的主控因素。

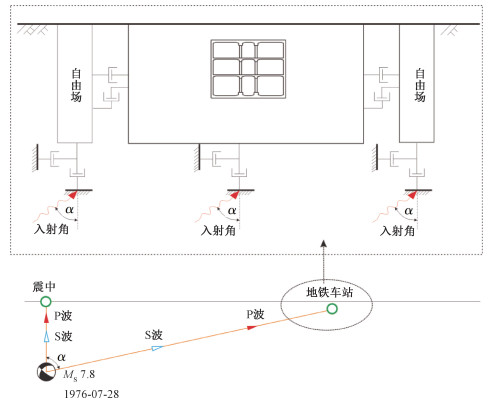

  • 图  1  纵横波作用下模型边界条件示意图

    Figure  1.  Diagram showing the boundary conditions of the model with P and S seismic waves

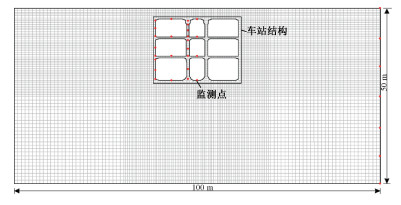

    图  2  FLAC2D计算模型及监测点

    Figure  2.  FLAC2D computational model and monitoring points

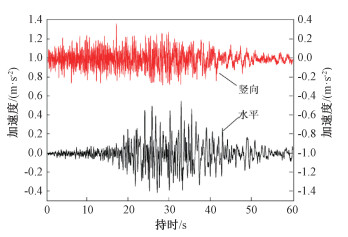

    图  3  输入数值模型的水平、竖向加速度时程曲线

    Figure  3.  Time-history curves of the horizontal and vertical accelerations inputted in the numerical model

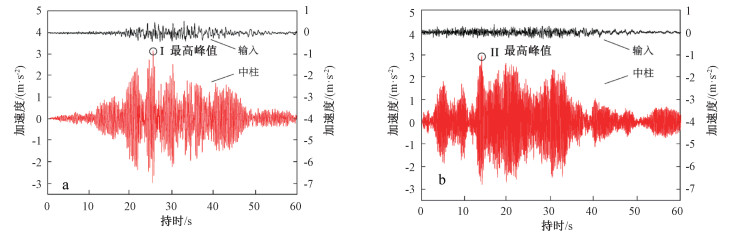

    图  4  模型监测点(底部输入、中柱顶部)加速度时程曲线

    a—水平加速度; b—竖向加速度

    Figure  4.  Time-history curves of the acceleration at the monitoring points in the numerical model

    (a) Horizontal acceleration; (b) Vertical acceleration

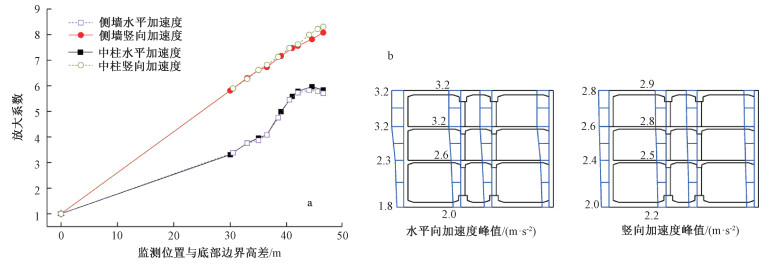

    图  5  结构动力加速度峰值及放大系数

    a—加速度放大系数随高差变化规律曲线; b—结构上加速度峰值分布规律包络图

    Figure  5.  Amplification coefficient and peak value of the structural dynamic acceleration

    (a) Curves of acceleration amplification coefficient with a height difference; (b) Envelope diagram of the structural acceleration peaks

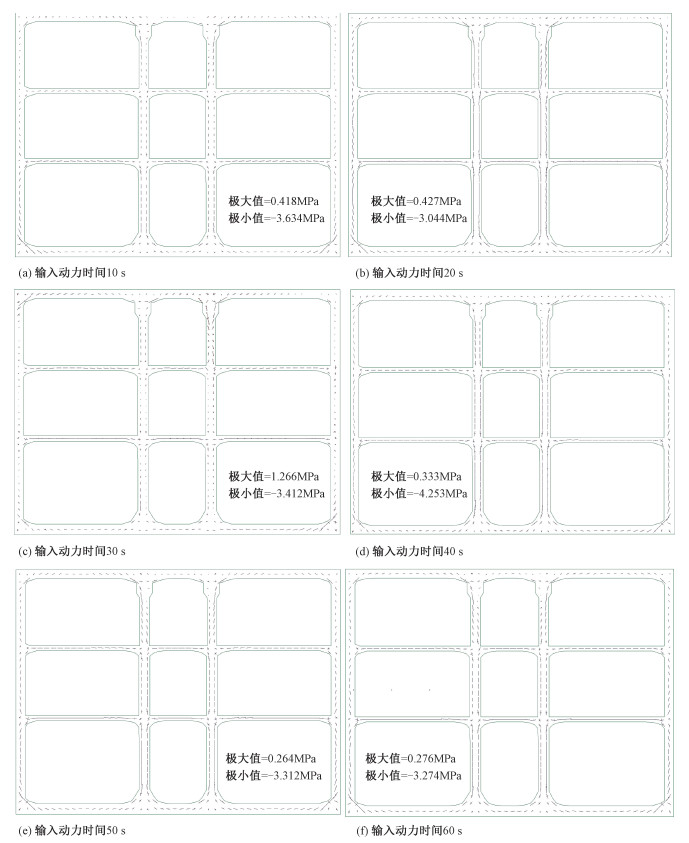

    图  6  地铁车站结构各监测点处地震应力峰值

    Figure  6.  Seismic stress peak at each monitoring point of the structures of the subway station

    表  1  土层参数

    Table  1.   Soil parameters

    名称 厚度/m 重度/(kN·m-3) 剪切波速/(m·s-1) 泊松比 黏聚力/kPa 内摩擦角/(°)
    杂填土 3.0 1.81 200 0.30 10.00 10
    圆砾卵石 4.0 2.10 363 0.31 20.00 23
    卵石 7.0 1.93 405 0.30 0.00 35
    卵石 9.0 2.10 523 0.30 0.00 40
    卵石 8.0 2.13 623 0.30 0.00 42
    卵石 19.0 2.16 666 0.30 0.00 42
    下载: 导出CSV

    表  2  结构参数

    Table  2.   Structural parameters

    部位 重度/(kN·m-3) 弹性模量/GPa 几何尺寸/m
    25.0 34.5 直径:0.7
    梁、板 24.0 33.5 上中下长度:9.55、2、9.55
    单位宽度:1.0
    厚度:0.4
    车站结构框架 25.0 30.0 长度:24.1
    单位宽度:1.0
    厚度:0.7
    下载: 导出CSV
