基于复合方法的天水盆地宽频带地震动模拟

付长华; 吴健; 郭祥云; 胡刚; 王涛; 刘甲美

基于复合方法的天水盆地宽频带地震动模拟

1.
中国地震局地球物理研究所, 北京 100081
2.
中国地质科学院地质力学研究所, 北京 100081

基金项目:

国家重点研发计划课题 2017YFC0404901

中央级公益性科研院所基本科研业务费专项 DQJB16A02

地质调查项目 DD20160271

国家自然科学基金项目 41572313

详细信息

作者简介:
付长华(1978-), 男, 博士, 助理研究员, 主要从事强地面运动与地震动数值模拟方面的研究工作。E-mail:fuchanghua2004@163.com

中图分类号: P315.8
计量
- 文章访问数: 154
- HTML全文浏览量: 100
- PDF下载量: 10
- 被引次数: 0
出版历程
- 收稿日期: 2017-04-10
- 刊出日期: 2017-12-28

BROADBAND GROUND MOTION SIMULATION IN TIANSHUI BASIN BASED ON A HYBRID METHOD

1.
Institute of Geophysics, China Earthquake Administration, Beijing 100081, China
2.
Institute of Geomechanics, Chinese Academy of Geological Sciences, Beijing 100081, China

摘要

摘要: 本文采用有限差分和随机振动合成结合的复合方法，模拟了当礼县—罗家堡断裂发生矩震级Mw7.7级大地震时，在天水盆地产生的宽频带地震动场，分析了在设定地震条件下盆地内的地震动分布特征，为该区黄土地震滑坡分析提供了地震动参数结果。结果显示：（1）有限差分法和随机振动合成法可以很好地互补，得到盆地内地表宽频带地震动；（2）地震在盆地区域产生了强烈地震动，PGA（峰值加速度）介于150~900 gal，离断层较近的区域东南角的PGA最大，随着断层距的增加，PGA逐渐减小。河谷南侧的PGA值相比北侧较大，具备诱发滑坡的强大动力条件；（3）盆地区域PGV（峰值速度）最大为120 cm/s。受第四系覆盖层放大效应和地形放大效应共同影响，水平向地震动在盆地区域东侧和中部具有较大PGV，而西侧PGV相对较小。竖向地震动在盆地区域东侧较弱，而在中部和西侧较强，特别是最西侧陡峭的山坡上，PGV达到了最大值。此外，竖向地震动明显受到覆盖层厚度的影响，譬如在盆地区域南侧的中间部位，也具有较大的PGV。
- 天水盆地 /
- 设定地震 /
- 复合方法 /
- 数值模拟 /
- 地震动参数
Abstract: Taking Lixian-Luojiabao fault as a causative fault of an Mw 7.7 scenario earthquake, a hybrid numerical method combining finite difference method with random vibration synthesis method is adopted to simulate broadband ground motion field in Tianshui basin, and the ground motion characteristics in the basin are analyzed, providing ground motion parameters for analyzing seismic loess landslides. The following conclusions are acquired:(1)Finite difference method and random vibration synthesis method are complementary to get broadband ground motion in the basin. (2)The scenario earthquake causes intensive ground motion in the basin, with PGA (peak ground acceleration) of 150~900 gal. The largest PGA is located in the southeastern corner of the basin where is nearest to causative fault, and it decreases with the distance from causative fault. Compared to the north side of river valley, the south side has larger PGA to induce landslides. (3)The largest PGV is 120cm/s in the basin. Affected by Quaternary covering layer amplification effect and terrain amplification effect, PGV in the east and the central parts of the basin are larger than those in the west part. (4)The vertical ground motion shows smaller PGV in the east part of the basin but larger ones in the west and central parts. Especially at the western most steep mountains, PGV reaches the maximum. In addition, the vertical ground motion can also reflect the influence of loess layer, for example, the PGV is also larger in the central part of the south side of the basin.
- Tianshui basin /
- scenario earthquake /
- hybrid method /
- numerical simulation /
- ground motion parameters

HTML全文

图 1 天水盆地及周边地区地震构造背景

①—六盘山东麓断裂；②—清水河断裂；③—西秦岭北缘断裂；④—礼县-罗家堡断裂；⑤—通渭断裂 Ⅰ—龙门山地震带；Ⅱ—六盘山-祁连山地震带；Ⅲ—鄂尔多斯地震带；Ⅳ—长江中游地震带

Figure 1. Seismotectonic background in Tianshui basin and its adjacent areas

下载: 全尺寸图片幻灯片

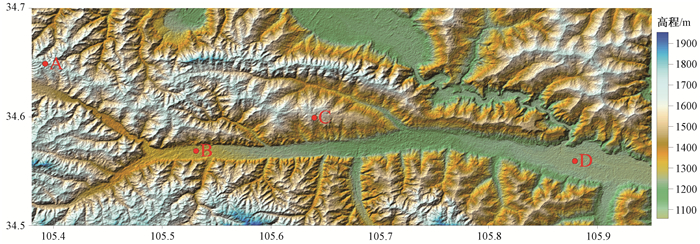

图 2 天水盆地区域地形图

Figure 2. Topography of Tianshui basin

下载: 全尺寸图片幻灯片

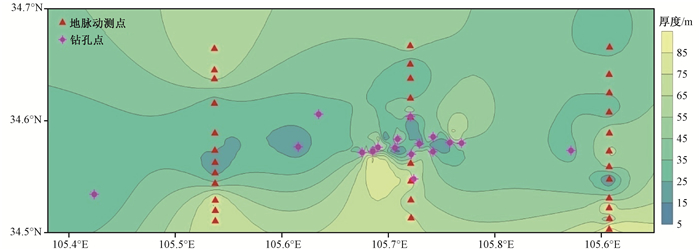

图 3 天水盆地第四系覆盖层等厚线图

Figure 3. Isopach of Quaternary covering layer in Tianshui basin

下载: 全尺寸图片幻灯片

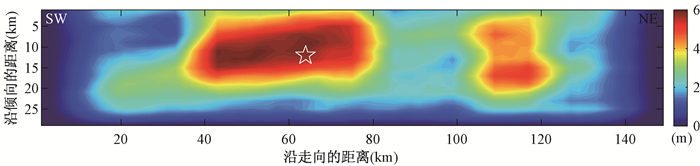

图 4 断层面上滑动量分布及初始破裂点位置

Figure 4. Slip distribution on the fault plane and location of the initial rupture point

下载: 全尺寸图片幻灯片

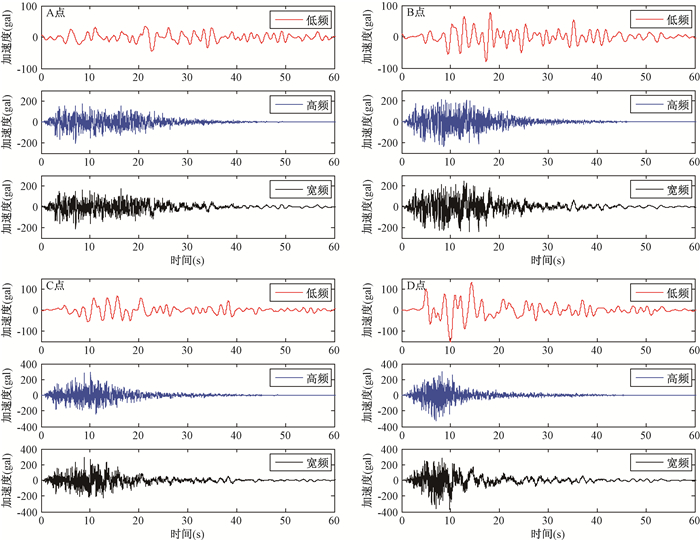

图 5 A、B、C、D四点的地震动加速度时程

Figure 5. Ground motion acceleration histories of station A, B, C and D

下载: 全尺寸图片幻灯片

图 6 A、B、C、D四点加速度傅立叶谱

Figure 6. Fourier spectra of station A, B, C and D

下载: 全尺寸图片幻灯片

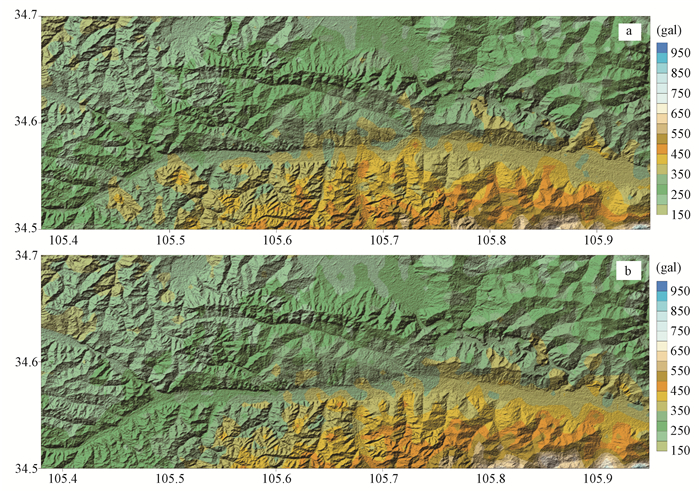

图 7 天水盆地内PGA分布

a-东西向 b-南北向

Figure 7. Distribution of peak ground acceleration in Tianshui basin

下载: 全尺寸图片幻灯片

图 8 天水盆地区域内PGV分布

a-东西向 b-西向 c-竖向

Figure 8. Distribution of peak ground velocity in Tianshui basin

下载: 全尺寸图片幻灯片

表 1 天水盆地地下介质的计算参数

Table 1. Calculation parameters of underground media in Tianshui basin

介质层	第四系覆盖层	沉积层	上地壳	中地壳	下地壳
介质密度/g·cm^-3	2.00	2.25~2.65	2.80	2.90	3.00
纵波速度/km·s^-1	2.0	3.0~5.8	5.9~6.5	6.6~7.0	7.0~7.2
横波速度/km·s^-1	1.0	1.5~3.3	3.4~3.8	3.8~4.1	4.1~4.2
介质品质因子	100	150~330	340~380	380~410	410~420
层介质埋深/km	0~0.09	0~6.5	6.5~24	24~38	38~40

下载: 导出CSV
